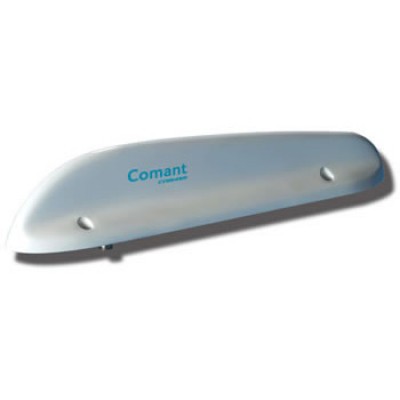

Frequency • 75 MHz Low-drag, lower profile alternative to the popular CI 102 ¡°boat style¡± marker beacon antenna. Approved for medium to high performance single, turbo-prop or jet aircraft and provides simple external mounting. Skydrol and rain erosion resistant. DC grounded to minimize accumulation of precipitation static. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
MODEL CI 118-1 MARKER BEACON | |
Electrical | |
Frequency | 75 MHz |
VSWR | ¡Â 1.5:1 Maximum |
Polarization | Parallel to the Mounting Plane |
Radiation Pattern | Partially Downward |
Impedance | 50 Ohms |
Resistance DC | DC Grounded |
Power RF | Receive Only |
Mechanical | |
Weight | 0.5lb. Maximum |
Height | 2.40 in. Maximum |
Material | Molded Radome |
Finish | Polyurethane Enamel |
Connector | BNC |
Environmental | |
Temperature | -55¨¬C to +85¨¬C |
Altitude | 45,000 ft. |
Air Speed | 400 Knots TAS at 25,000 ft. |
Federal Specifications | |
RTCA Environmental | DO-160A |
FAA TSO | C35d |
RTCA MOPS | DO-138, DO-143 |
