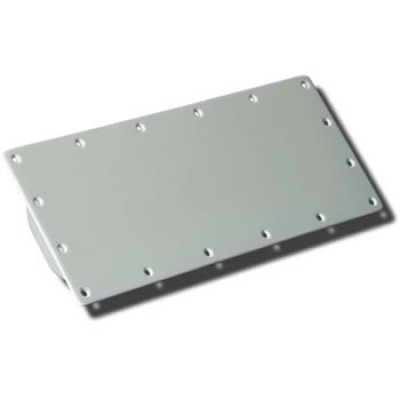

Comant Marker Beacon (CI-165)

$2469.00/Each
Quantity
Add to Wishlist
Part# 11-06851
MFR Model# CI-165

Overview

Frequency • 75 MHz

Lightweight flush mount antenna was originally designed for use on military aircraft. Provides for dual marker beacon signal outputs at the antenna, eliminating the need for a separate marker beacon splitter. Antenna is housed in a aluminum enclosure with a glass laminate cover. Internal components are potted in place for mechanical integrity. The CI 164 is designed for curved “crown” surface mounting as is currently used on the Cessna Citation I and II.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

MODEL CI 165 MARKER BEACON
Electrical
Frequency
75 MHz
VSWR

1.5:1 Max at 75 MHz
5.0:1 Max at 75 +-.15 MHz

Polarization
Horizontal
Isolation Between Ports
22dB
Impedance RF
50 Ohms
Resistance DC
DC Grounded
Power RF
Receive Only
Mechanical
Weight
1.0 lb. Maximum
Height
Flush Mount
Material
Aluminum Housing Glass Lam. Cover
Finish
White Poly. Enamel /Housing Flat
Grey
Connector
BNC (Two Places)
Environmental
Temperature
-55ºC to +85º C
Altitude
45,000 ft.
Air Speed
600 Knots TAS at 55,000 ft.
Federal Specifications
RTCA Environmental
DO-160A
FAA TSO
C35d
RTCA MOPS
DO-138, DO-143
