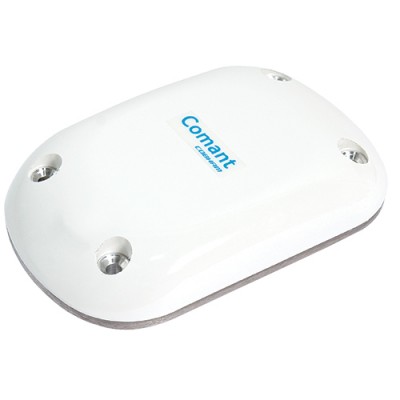

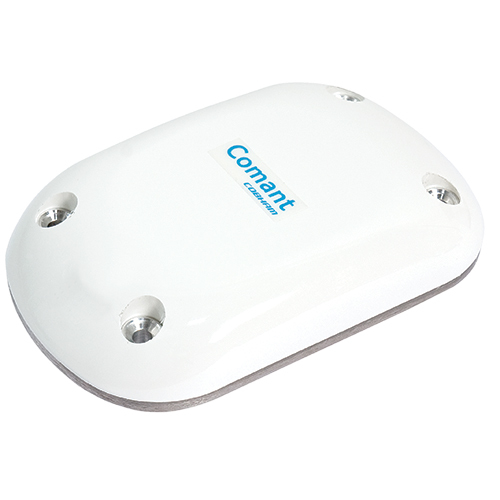

The CI-428-200 ComData GPS WAAS antenna is specifically designed to meet the GPS WAAS Gamma 3 specifications required by the Garmin G1000 system and matches the standard ARINC footprint found on many twin engine and business jets. It meets the RTCA DO 160D operating standards including direct effects lighting. Gamma 3 WAAS allows for primary navigation using GPS for all phases of flight including precision LPV approaches. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
MODEL CI 428-200 COMDAT | |
Preamp Characteristics | GPS |
Frequency | 1575.42 MHz +/- 3 MHz< |
Connector | TNC (female) |
Polarization | RHCP |
Radiation Gain Pattern | Hemispherical |
Impedance | 50 Ohms |
VHF Characteristics | VHF |
DC Voltage | 4 to 24 VDC |
Impedance | 50 Ohms |
Mechanical/ Environmental | |
Weight | 6.2 oz |
FAA TSO | C144 |
