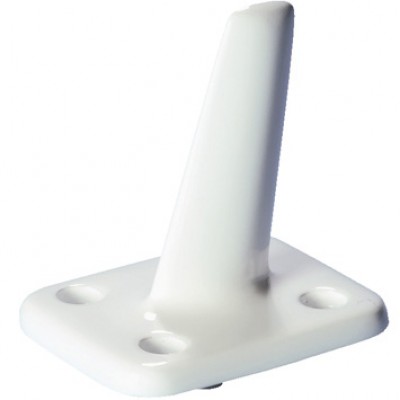

Frequency • 960-1220 Miniature high speed DME/Transponder - one of the smallest DME/Transponder antennas available from Comant. Less than 2.75 inches high, featuring a very low-drag frontal profile. Strong, lightweight and easy to mount using four external mounting holes through base. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
MODEL CI 305 DME/TRANSPONDER | |
Electrical | |
Frequency | 960 to 1220 MHz |
VSWR | 1.8:1 Maximum |
Polarization | Vertical |
Radiation Pattern | Equivalent to 1/4 Stub |
Impedance RF | 50 Ohms |
Resistance DC | Open Circut |
Power RF | 1 KW Peak |
Mechanical | |
Weight | 0.3 lb. Maximum |
Height | 2.75 in. Maximum |
Material | Molded Radome |
Finish | White Polyurethane Enamel |
Environmental | |
Temperature | -54ºC to +55ºC |
Altitude | 45,000ft. |
Air Speed | 600 Knots TAS at 35,000 ft. |
Federal Specifications | |
RTCA Environmental | DO-160A |
FAA TSO | C66b, C74c |
RTCA MOPS | DO-144, DO-189 |
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes this antenna could work. You could also use 11-17965.
You must install this as required by the manufacturer. Per the installations they require an RTV sealant around the periphery of the antenna.
Yes, this antenna will work for both functions. It is certified and the gasket is sold separately.
