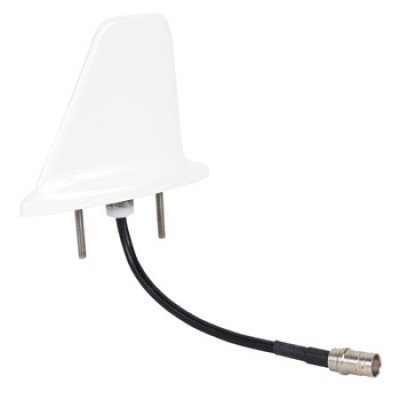

Frequency • 960-1220 MHz Broadband and rugged antenna designed for DME or tranponder use. Antenna assembly encased in a glass reinforced polyester molded shell. CI 105-9 comes standard with a 6” extension coax cable and BNC connector. This model offers standard two stud mounting, where the studs are extended to 1 inch in length. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
MODEL CI 105-9 DME/ TRANSPONDER | |
Electrical | |
Frequency | 960 to 1220 MHz 1030 to 1090 MHz |
VSWR | 1.5:1 960 to 1220 MHz 1.3:1 1030 to 1090 MHz |
Polarization | Vertical |
Radiation Pattern | Equivalent to 1/4 Stub |
Impedance RF | 50 Ohms |
Resistance DC | Open Circut |
Power RF | 2.5 KW Peak |
Mechanical | |
Weight | 0.24lb. Maximum |
Height | 3.23 in. |
Material | Molded Radome |
Finish | Polyurethane Enamel |
Environmental | |
Temperature | -54ºC to +55ºC |
Altitude | 70,000ft. |
Air Speed | 400 Knots TAS at 25,000 ft. |
Federal Specifications | |
RTCA Environmental | DO-160C |
FAA TSO | C66b, C74c |
RTCA MOPS | DO-144, DO-189 |
