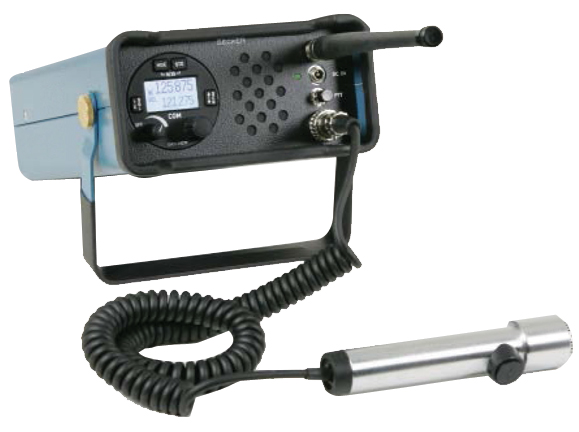

Becker Gk615-5 Portable VHF Station
$3309.00/Each
Part# 11-12319
MFR Model# 0940.472 923
MFR Model# 0940.472 923
FREE Shipping
- JUMP TO
- Overview
- Features
- Reviews
- Q&A
- View in Catalog
Overview
|
The carrying case contains the battery, speaker, antenna socket, the 5 way DIN socket for the micro- phone or microphone speaker and the voltage converter. A microphone, a headset or a helmet (ultra- light) can be connected to the 5-way DIN socket. The built-in battery is a maintenance-free recharge- able 12 V / 2 Ah dry lead acid battery. The transmitter power is approximately 5 to 7 W. The battery can be charged via the socket ext. D.C. The charging voltage can be varied between 10 V and 32 V. The charging time for a heavily discharged battery is approximately 8 hours. The nominal operating time for the portable VHF station is approximately 6 hours at a keying ratio of 1:10 normal ra- dio traffic) and transmitter output power of 5 W. Reception is then still guaranteed for a further 2 hours. The transceiver contains a monitoring stage for the battery voltage which is activated when the unit is switched on. “LOW BATT” is indicated ( Appearance about every 5 seconds) if the supply voltage of the transceiver is below the threshold defined in the installation setup. The transceiver is still operable. Depending on supply voltage transceiver may have a reduced performance. Below 10 V speaker out- put is switched off. The portable VHF station is ready for operation after the antenna is screwed in place and microphone plugged in. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- Frequency Range: 118.000 MHz to 136.990 MHz
- Channel Spacing: 8.33 or 25 kHz
- Channel Selection: 8.33 or 25 kHz (selectable)
- RF-Output Power: > 6 W (carrier power)
- Receiver Sensitivity: > 12 dB sinad for 2 uV
