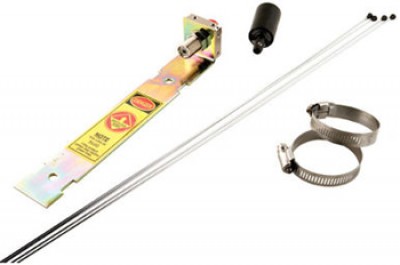

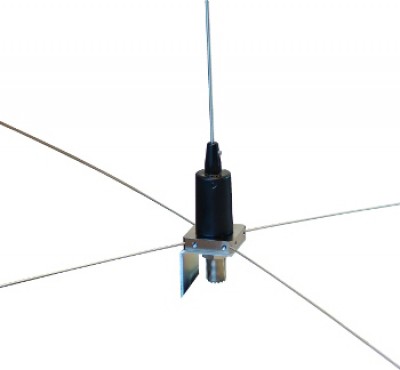

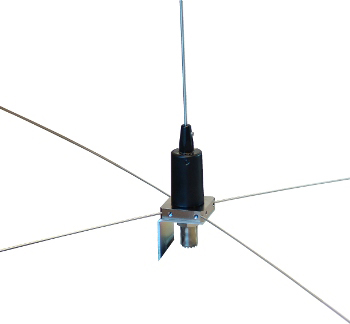

Icom B-Ant Building Antenna

$432.00/Each
Quantity
Add to Wishlist
Part# 11-18581
MFR Model# B-ANT

Overview

Base station antenna 118.000 to 136.975 MHz for Avionic mobile units.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

We buy these Antenna for replacing all of our Unicom stations around 3 airports. Plus a Mobil Tower setup we use at events.

Tracey C Verified Purchase

Icom B-Ant Building Antenna

November 28, 2022

Easy to put up and works fine

Kenneth F Verified Purchase

Icom B-Ant Building Antenna

October 1, 2021

Antenna comes with no mounting or assembly instructions. While it is mostly self explanatory, there are parts left over that make no sense on utilization. Calling Icom was not helpful as they were not able to provide installation instructions or assist with identifying and installing parts.

Aaron T Verified Purchase

Icom B-Ant Building Antenna

June 27, 2024

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this antenna come with RG-213 coax cable?

Yes this comes with 50 feet of RG-213 coax cable.

Q: The Icom building antenna is recommended with the Icom base station unit like the A110 and the A210 (versions in base station).

The Icom building antenna is recommend with the Icom base station unit like the A110 and the A210 (versions in base station).

Q: What is the reception range of an ICOM A-24 with the Icom B-Ant Building Antenna?

The Icom building antenna is recommended for use with an Icom base station unit like the A110 or the A210 and is not tested nor recommended for use with the A-24.

Q: What type of connecter used at the base of the Icom B-Ant antenna? Is it BNC type?

This antenna comes with the necessary connectors crimped onto the coax cable which are PL-259.

Q: Which type of cables that are compatible with this antenna besides RG213? Is RG142, RG400, RG58 or any other types of cable compatible? What about the length supported? I wish to install the antenna about 50 meters higher than the base station radio...Any suggestion?

Either one of those coax cables are compatible.

Q: Does this Icom B-Ant antenna require power?

It does not.
