Avidyne IFD510 Navigator for SBAS / LPV FMS

0 Reviews 0 Answered Questions
Select Version
Black BezelGray Bezel
Quantity
Add to Wishlist

Overview

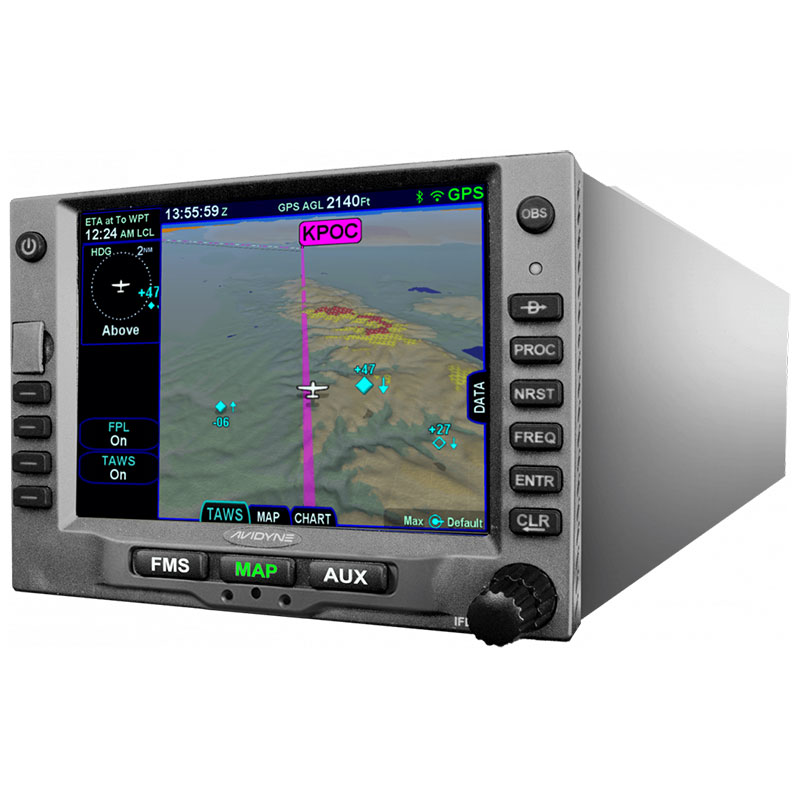

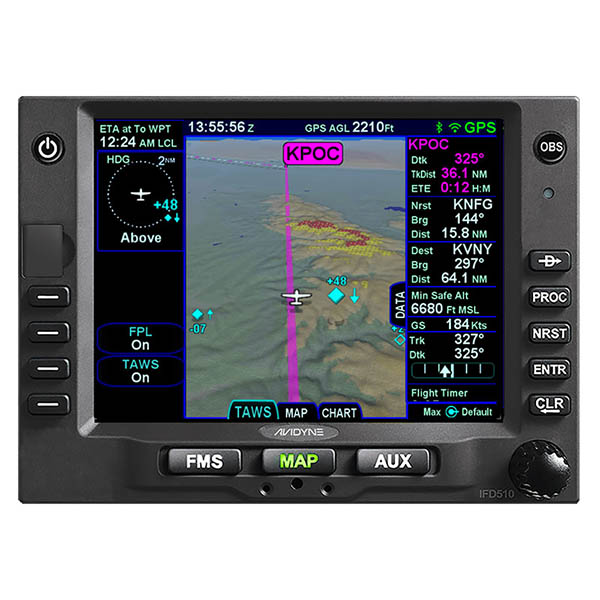

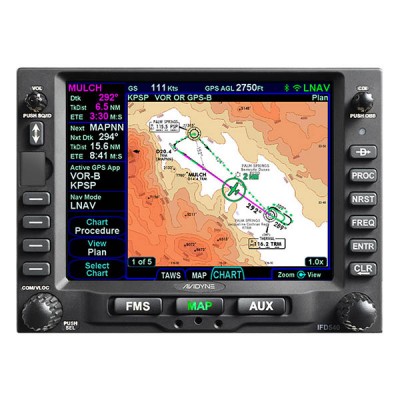

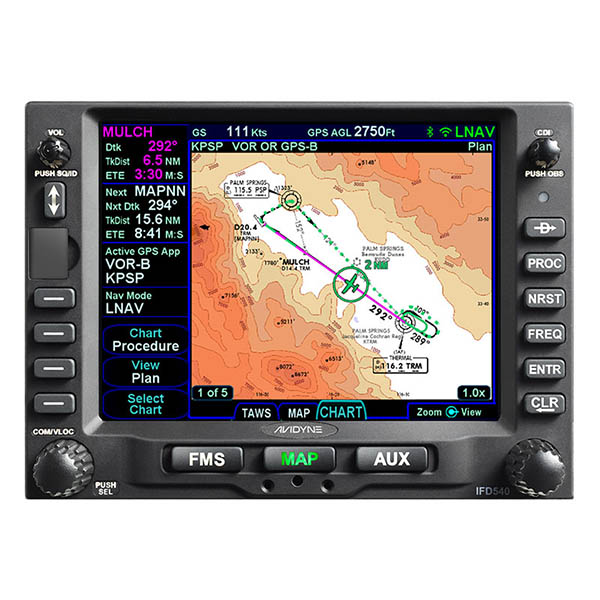

The IFD510 panel-mounted FMS Navigator provides SBAS/LPV capability for a wide range of legacy aircraft. The IFD510 is designed as a slide-in replacement for legacy GNS500 Series Navigators and shares the same same FMS feature set as the IFD540 minus the VHF radio. In addition to the full color plan-view Moving Map, the IFD510 provides an exocentric 3D Synthetic Vision display of terrain with hazard alerting, obstacles, and traffic. Everything you need to see on a bright, easy-to-view 5.7” touchscreen.

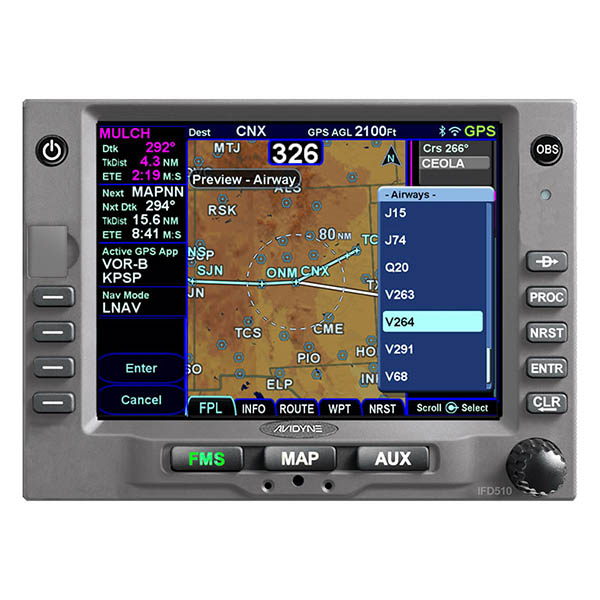

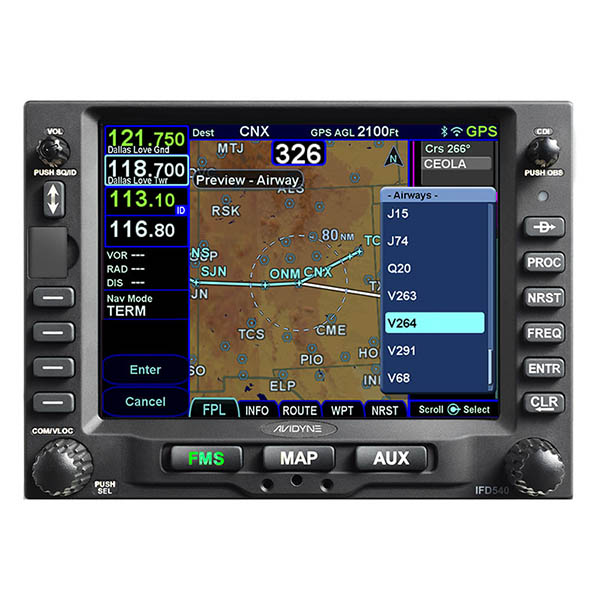

As with all of Avidyne's IFDs, the IFD510 includes many great features that make operation much easier including FMS Preview, which lets you easily create, upload and review your flight plans visually with changes shown on the screen before selection. And with Avidyne's patented GeoFill™, in-flight changes are a snap because the IFD510 predicts your next entry based on your location, not the sequence in the database.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Full SBAS/LPV FMS/GPS Capabilities
  • 3D exo-centric Synthetic Vision

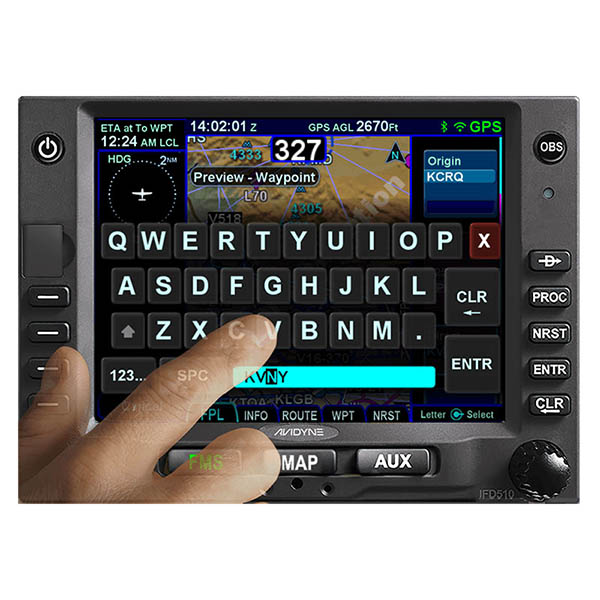

  • Hybrid touch user interface

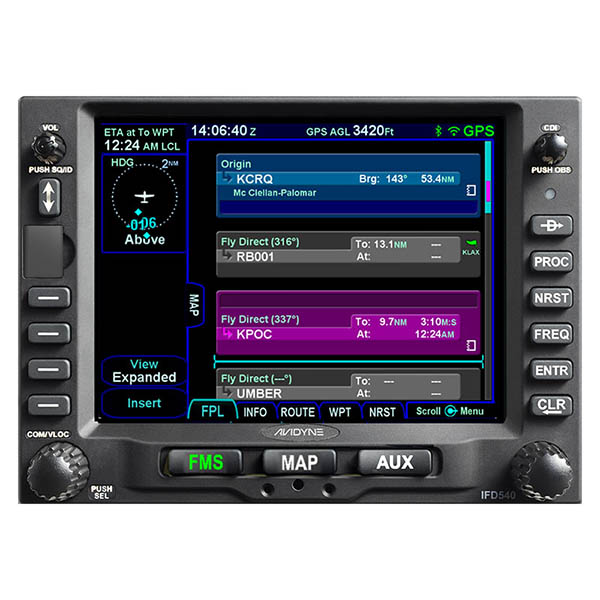

  • FMS Preview™ flight plan loading with real-time graphical depictions
  • Seamless integration to Avidyne’s IFD 100 iPad app

Specifications

  • 5.7” Diagonal w/Touch Screen
  • Full VGA - 640 x 480 pixels 65,535 colors
  • Ultrabright sunlight readable w/LED Backlighting
  • Width: 6.30” (16.0cm)
  • Height: 4.60“ (11.7cm)
  • Depth: 11.00“(27.5cm) behind panel including connector
  • IFD510 - 7.13 lb (3.23 kg)
  • 11 – 33VDC
  • 4.4A/6.5A Xmit @ 14vdc
  • 2.2A/4.0A Xmit @ 28vdc
  • 10 Watts nominal

Series Comparison

IFD 550 IFD 545 IFD 540 IFD 510 IFD 440 IFD 410
FMS/GPS • • • • • •
VHF NAV • • •
VHF COM • • •
3D SVS • • • • • •
ARS + DYNAMIC SVS • •
WiFi/BT/FLTA • • • • • •
Radar Optional Optional Optional Optional From 5-series From 5-series
Video Optional Optional Optional Optional N/A N./A

Documents

Compatibility

Air Data

  • B&D 2600 ADC, 2601 ADC, 2800 ADC, 900004-003 ADC
  • Bendix King KAD280/480 ADC (KDC 281,481)
  • Shadin ADC 2000, ADC 200, ADC 200+, 8800T Alt Computer, 9000T Alt Computer, 9200T Alt Computer, 9628XX-X Fuel/ADC
  • Insight TAS 1000 ADC
  • Icarus Instrument 3000
  • Sandia SAC7-35
  • Garmin GDC74A

EFIS

  • Avidyne EXP5000
  • Bendix King EFS40/50
  • Collins Proline 21, EFIS 84 (non-WAAS only)
  • Honeywell Primus 1000
  • Aspen EFD1000 Pilot PFD
  • Garmin G5
  • Garmin GI-275

Satellite Datalink Weather Interface

  • Avidyne MLB700/WSI AV-300 Broadcast Datalink Receiver
  • GDL69/A XM Broadcast Datalink using Baron Wx Services and XM® Satellite Receiver

Electronic Approach Charts & Airport Diagrams

  • CMax™ – ™ Electronic Airway Manual Charts (IFD5XX Only)
  • European VFR (Bottlang) Charts - optional

Charts, Nav Data, and other software updates are easily field loadable via USB port.

Lightning Interface

  • Avidyne TWX670 Tactical Lightning Detection
  • L3 WX-500 Stormscope® Weather Mapping Sensor

Wx Radar Systems

  • Bendix/King RDR2000

5-Series IFDs provide integrated control and display of your on-board Wx Radar on a dedicated page or overlayed right on the map (optional).

Traffic Interface

  • Avidyne SkyTrax600/605/610/615/620/A TAS/AXP322 TIS
  • Ryan 9900B/BX TAS
  • Honeywell KTA870/KMH880 TAS/IHAS/CAS66A TCAS I
  • L3 Skywatch 497 / HP TAS/ 791 TCAS I
  • Garmin GTS800/820 TAS/GTS850 TCAS I/ GTX330 TIS

ADS-B Interface

  • Avidyne SkyTrax605A/SkyTrax615A/ SkyTrax620A (Traffic)
  • Avidyne SkyTrax100
  • Avidyne AXP340, AXP322
  • L3-NGT 9000
  • FreeFlight RANGR
  • Garmin GTX330ES, GTX335, GTX345

Autopilot

  • Avidyne DFC90
  • Bendix King KFC400, KCP320, KCF325, KFC300, KFC275, KCF225, KCF250, KFC200, KCF150, KAP150, KAP140,KSP100
  • Century I, II, III, IV, 21, 31/41, 2000, Triden, AK 1081 GPSS Converter
  • Collins APC-65 Series, FGC-65, FYD-65
  • STec 20, 30, 40, 50, 55, 55X, 60 PSS, 60-1, 60-2, 65, ST901 GPSS Converter

Audio Panel

  • Avidyne AMX240
  • Apollo (Garmin) SL10, SL15
  • Garmin GMA 340, GMA 347
  • PS Engineering 6000, 7000, 8000/8000BT
  • Bendix King KMA24, KMA 26, KMA 28, KMA24H

Terrain Awareness

  • Color-Contoured Terrain Base Map Built in
  • Americas Terrain & US Obstacle Data
  • International Terrain Data (optional)

Video Interface

  • RS170 (optional)

IFD540 and IFD550 features an optional RS170 video input, capable of displaying video from aircraft-mounted IR/EVS or other compatible sources.

406 ELT Interface

  • Aviation RS-232
  • NMEA 0183

Applicable TSOs

  • TSO-C34e, TSO-C36e, TSO-C40c, TSO-C44c, TSO-C110a, TSO-C112e, TSO-C113a, TSO-C118, TSO-C128a, TSO-C146d, TSO-C147, TSO-C157a, TSO-C165, TSO-C169a
