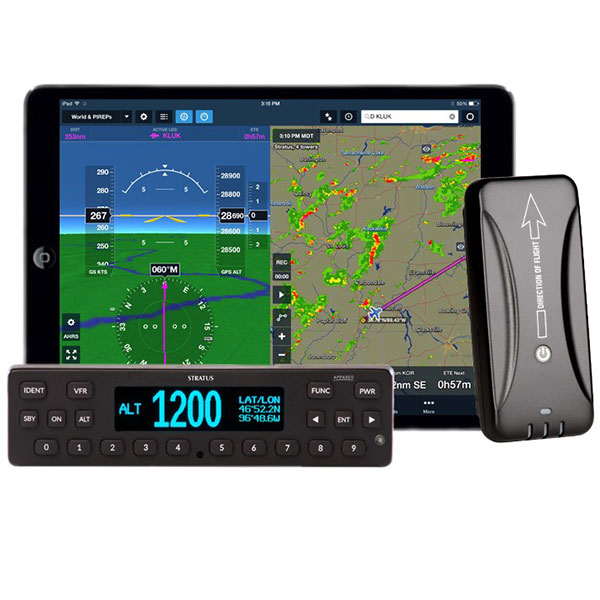

Appareo Stratus ES ADS-B In / Out Transponder With 3I Kit - Experimental Aircraft

0 Reviews 2 Answered Questions
$3394.00/Each
Quantity
Add to Wishlist
Part# 11-16557
MFR Model# 153010-000040/62

Overview

Note: Unit can only be sold for experimental aircraft.

Stratus Stratus ES provides a simple all-in-one solution. The unit was built without GPS in order to provide affordable ADS-B Out to aircraft owners who have already invested in WAAS GPS. Stratus ES will make an aircraft rule-compliant when paired with any of the following navigators:
  • Garmin 480, 430W, 530W, 6XX, 7XX
  • Avidyne IFD440, IFD540

Stratus ES (ADS-B OUT)
  • 1090ES transponder
  • Utilizes existing navigator for GPS Source
Stratus 3i (ADS-B IN)
  • Non-certified receiver made only for Stratus ES
  • Backup AHRS
  • Integrated with ForeFlight on iPad
  • Requires connection to Stratus ES

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • 1090ES (Mode S extended squitter)
  • Meets global mandates for ADS-B Out
  • Push-button operation
  • Easy-to-use interface
  • Pressure altitude monitor

Specifications

  • Bezel Height: 1.69 in. (43 mm)
  • Bezel Width: 6.38 in. (162 mm)
  • Depth: 10.75 in. (273 mm) front of panel to connector backshell
  • Weight: 3.29 lbs. (1.49 kg) including rack and connectors
  • Operating Temperature: -20°C to 55°C
  • Storage Temperature: -55°C to 85°C
  • Power Input: 9.0 to 36.0 VDC, 15 W typical
  • Cooling Input: No fan required
  • Environmental Compliance: DO-160G
  • Software Compliance: DO-178B Level C
  • Hardware Compliance: DO-254 Level C
  • Display: OLED
  • Transmitter Power: 310 W
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the difference between 11-16557 and 11-16558? Looks like the same except ES and ESG.

The difference is in the Transponder. ESG has a built in GPS receiver that will allow connection to a WAAS GPS antenna. The ES will need a WAAS GPS source.

Q: Can the Stratus 3i display traffic via the TIS input to a Garmin 496?

Per the manufacturer, the Garmin 496 is not on the list of compatible devices/apps. You can use the GDL 50 p/n: 11-16232
