Piper Wing Root Seal

$83.75/Each
Quantity
Add to Wishlist
Part# 05-13058
MFR Model# WR-693-B

Overview

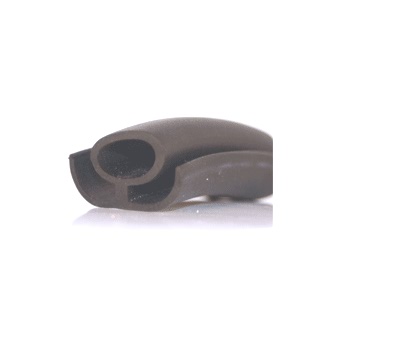

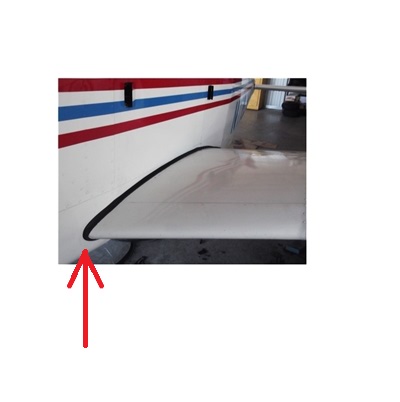

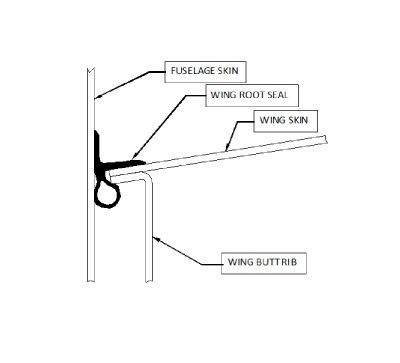

This package contains one wing root seal (12 FT). This is enough seal to replace the seal on one wing of your Piper aircraft, it is made of a Black neoprene rubber material. The material is soft and flexible and can be worked into the gap between the wing and fuselage without out having to remove the aircraft’s wing.

Sold in 12' package

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Dimensions

Reviews

Issam A Verified Purchase

Piper Wing Root Seal Black Rubber 12Ft

September 18, 2024

1971 PA28-180 This product worked like a charm. Use a little silicon lube to help it slide in.

Michael B Verified Purchase

Piper Wing Root Seal Black Rubber 12Ft

January 18, 2024

Second time purchased . Decent to install. Only difference from a couple years ago was the price that increased substantially. Either way great quality product.

Derek E Verified Purchase

Piper Wing Root Seal Black Rubber 12Ft

October 20, 2023

A little pricey for what it is, but was easy to install and looks great.

Michael A Verified Purchase

Piper Wing Root Seal Black Rubber 12Ft

May 16, 2023

The old ones where dry and worn. The new ones from Aircraftspruce fit perfectly. Dont forget to use soap to lubricate, it is tight.

Klingenberg P Verified Purchase

Piper Wing Root Seal Black Rubber 12Ft

October 11, 2022

Easy to install on PA28R200. Looks so much better now! Just don’t do one wing in the Fall and wait to do the other in the Spring like I did unless you properly store the seal over the winter. (A mouse nibbled on the edge of the seal right in the mid portion and I had to replace with a new one). Easier to install on a hot day because the rubber is more pliable.

Kim R Verified Purchase

Piper Wing Root Seal Black Rubber 12Ft

July 8, 2022

David M Verified Purchase

Piper Wing Root Seal Black Rubber 12Ft

July 1, 2022

As described. Is narrower than what was on the plane, but still wide enough. Took less than an hour to remove the old seal and install the new one.

Gregory A Verified Purchase

Piper Wing Root Seal Black Rubber 12Ft

June 21, 2022

Perfect fit and installation on 1970 PA28R. Like others have recommended, I used a heat gun to warm it a bit first and a wooden paint stir stick to push it into place. Took less than 30 minutes per side to complete.

Bill W Verified Purchase

Piper Wing Root Seal Black Rubber 12Ft

January 21, 2022

Fits perfect on the Wingroot of my PA-24 260B. Did it by myself and took about 2 hrs per wing. But honestly, its NOT complicated

Jaison
September 3, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this item require to be PMAd? Is the installation covered under owner maintenance?

Per the vendor they do not have PMA paperwork. It would need to be signed off by an A&P.

Q: How wide a gap will this seal as I would like to use it on my Hatz Biplane upper wings?

It is 1" wide.

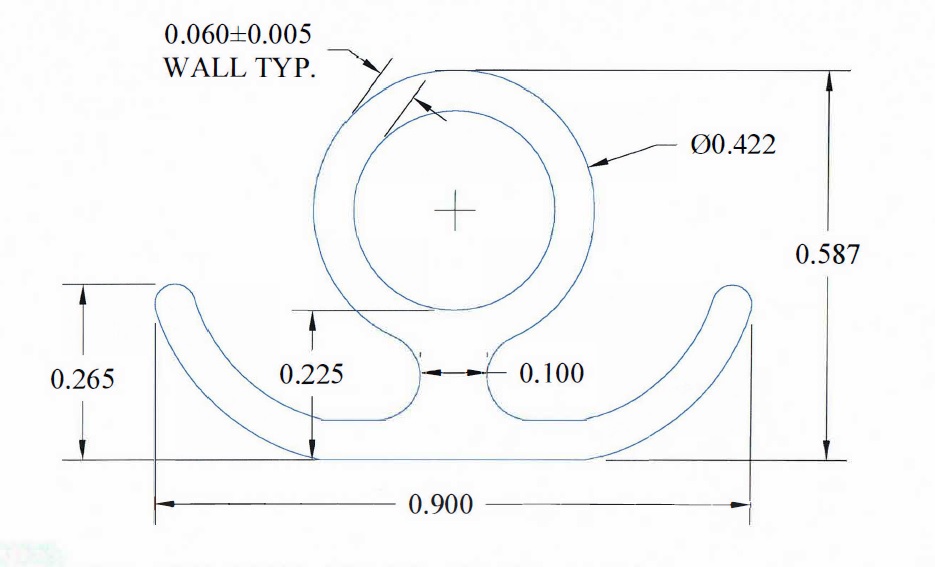

Q: What are the actual dimensions of this seal? I want to try it in another application so need to know overall width and the “T” thickness for the minimum gap.

We have added the drawing to the web page in the "Dimensions" tab.
