Newton Aero 200 Fuel Cap Non-Locking 6 Bolt

$135.75/Each
Quantity
Add to Wishlist
Part# 05-06836
MFR Model# A26S

Overview

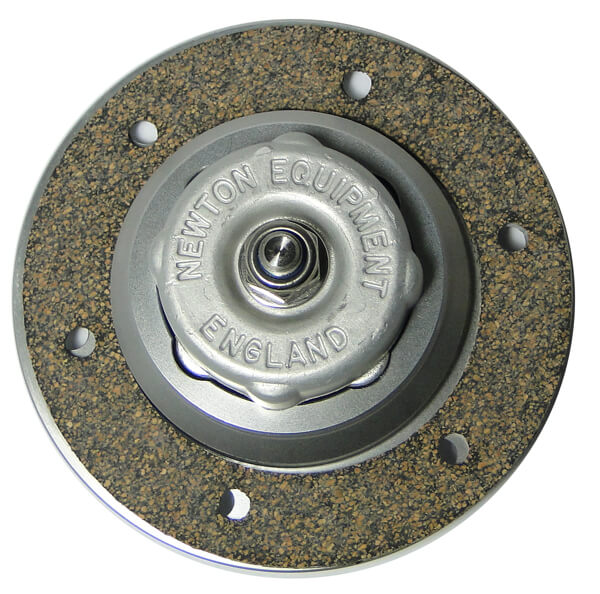

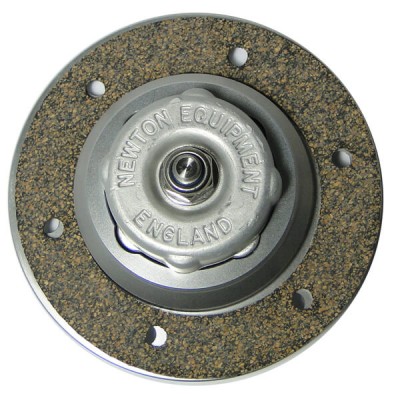

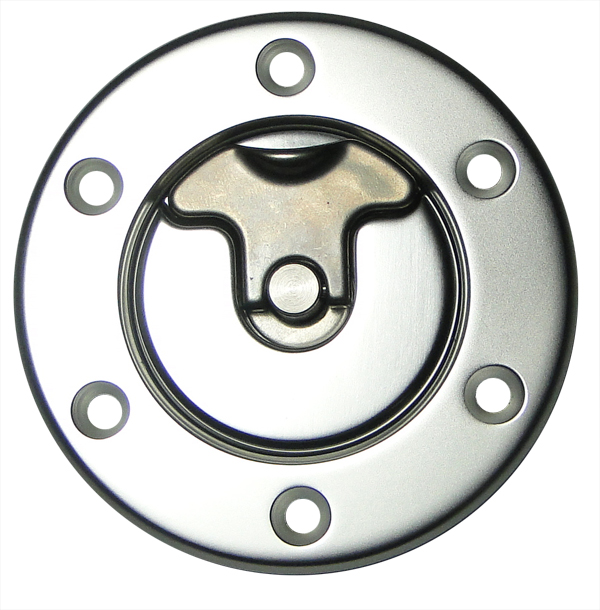

The all-metal construction of the Aero 200 Fuel Cap combines strength and lightweight, with a 6 hole flange - To fit directly into tank. Specified for use with many hostile fluids.

Due to the compact dimensions it is not possible to fit a lock to the Aero 200.

Specifications
Options:   No-Lock Only.
Fixing Arrangement:   6 x M5 Countersunk Bolts
Applications:   Fuel, Oil & Water Tanks
Finish:   Anodised Clear (Silver)
Weight:   99.5 g
Supplied with:   (1) Gasket
    (6) M5 x 12mm S/S screws
    (6) Washers
    (6) Nylock Nuts

Materials
Centre-Forging:   Aluminium Alloy 6082
Flange:   Aluminium Alloy 6082/T6
O Ring:   Viton A
Saddle:   Acetal

Dimensions
Outside Diameter A:   80.0 mm
Centre Diameter B:   46.0 mm
Bolt Circle Dia. (PCD) C:   63.5 mm (2.5")
Overall Depth I   26.5 mm
Bore   35.5 mm
Spigot   50.5 mm
Neck Diameter   44.0 mm
Flange Thickness   2.5 mm

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Product was very good quality Exactly as described

Jd J Verified Purchase

Newton A26S Aero 200 Filler Cap 6 Bolt Flange Non-Locking

July 14, 2022

Great fuel cap, installing it on a custom fuel tank on my motorcycle, well built, positive lock, great quality.

Spero
April 13, 2019

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are these Newton fuel caps approved for use on certified aircraft?

No, these are intended for use on experimental aircraft only.

Q: Regarding Newton Fuel Cap Without Lock FIL NK A2S: What is the overall diameter of the flange?

The overall diameter of the flange is 3-1/8".

Q: Is the Aero 200 fuel cap vented or non-vented?

It is non-vented.
