McFarlane MCSK172-2 Cessna Nose Strut Seal Kit

$99.75/Each
Quantity
Add to Wishlist
Part# 05-29067
MFR Model# MCSK172-2

Overview

FAA-PMA for many Cessna 150 thru 337 aircraft

Solves the continuous leak and re-service problems with the Cessna nose strut

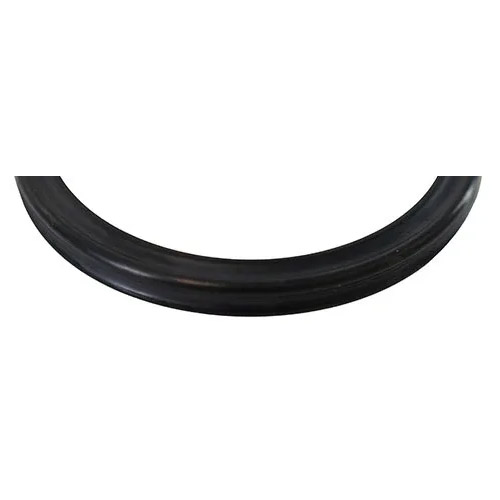

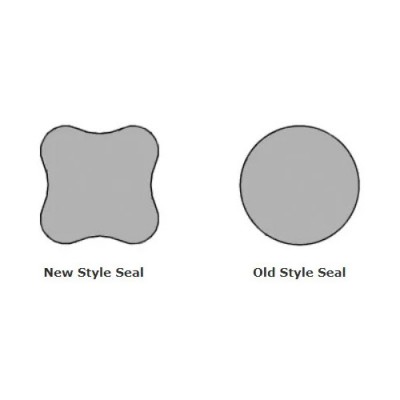

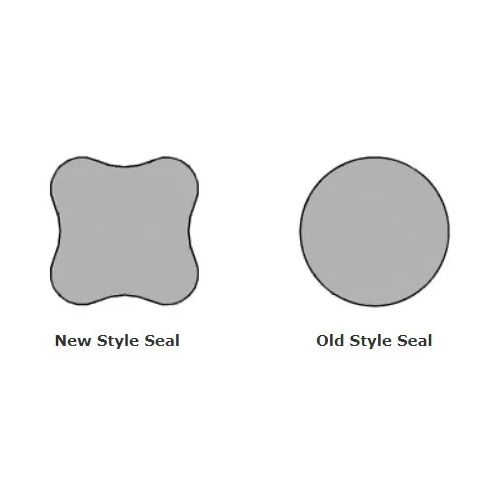

  • Double edge (“X” style) seal that will not twist and leak!
  • Go years without servicing!
  • Includes all o-rings, back-up rings, scraper, and AN901-5A gasket
  • Lock rings now made of stainless steel for better corrosion resistance

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

Make Series Model Start S/N End S/N Quantity Per Aircraft Location Eligibility Chart
Cessna 182 182 33000 33842 1 NOSE STRUT 7364
Cessna 182 182A 33843 51556 1 NOSE STRUT 7364
Cessna 182 182B 51557 52358 1 NOSE STRUT 7364
Cessna 182 182C 52359 53007 1 NOSE STRUT 7364
Cessna 182 182D 18253008 18253598 1 NOSE STRUT 7364
Cessna 210 210 57001 57575 1 NOSE STRUT 7364
Cessna 210 210A 21057576 21057840 1 NOSE STRUT 7364
Cessna 310 310 35000 35546 1 NOSE STRUT 7364
Cessna 310 310 35000 35546 1 MAIN STRUT 7364
Cessna 310 310B 35547 35771 1 NOSE STRUT 7364
Cessna 310 310B 35547 35771 1 MAIN STRUT 7364
Cessna 310 310C 35772 39031 1 MAIN STRUT 7364
Cessna 310 310C 35772 39031 1 NOSE STRUT 7364
Cessna 310 310D 39032 39299 1 NOSE STRUT 7364
Cessna 310 310D 39032 39299 1 MAIN STRUT 7364
Cessna 310 310F 310-0001 310-0156 1 MAIN STRUT 7364
Cessna 310 310F 310-0001 310-0156 1 NOSE STRUT 7364
Cessna 310 310G 310G0001 310G0156 1 MAIN STRUT 7364
Cessna 310 310G 310G0001 310G0156 1 NOSE STRUT 7364
Cessna 310 310H 310H0001 310H0148 1 NOSE STRUT 7364
Cessna 310 310H 310H0001 310H0148 1 MAIN STRUT 7364
Cessna 310 310H 310H0001 310H0148 1 NOSE STRUT 6682
Cessna 310 310I 310I0001 310I0200 1 NOSE STRUT 7364
Cessna 310 310I 310I0001 310I0200 1 MAIN STRUT 7364
Cessna 310 310I 310I0001 310I0200 1 NOSE STRUT 6682
Cessna 310 310J 310J0001 310J0200 1 NOSE STRUT 7364
Cessna 310 310J 310J0001 310J0200 1 NOSE STRUT 6682
Cessna 310 310J 310J0001 310J0200 1 MAIN STRUT 7364
Cessna 310 310J-1 310J0001 310J0200 1 MAIN STRUT 7364
Cessna 310 310J-1 310J0001 310J0200 1 NOSE STRUT 6682
Cessna 310 310J-1 310J0001 310J0200 1 NOSE STRUT 7364
Cessna 310 310K 310K0001 310K0245 1 NOSE STRUT 6682
Cessna 310 310K 310K0001 310K0245 1 NOSE STRUT 7364
Cessna 310 310K 310K0001 310K0245 1 MAIN STRUT 7364
Cessna 310 310L 310L0001 310L0207 1 NOSE STRUT 7364
Cessna 310 310N 310N0001 310N0198 1 NOSE STRUT 7364
Cessna 310 E310H 310H0001 310H0148 1 NOSE STRUT 6682
Cessna 310 E310H 310H0001 310H0148 1 NOSE STRUT 7364
Cessna 310 E310H 310H0001 310H0148 1 MAIN STRUT 7364
Cessna 310 E310J 310J0001 310J0200 1 NOSE STRUT 7364
Cessna 310 E310J 310J0001 310J0200 1 MAIN STRUT 7364
Cessna 310 E310J 310J0001 310J0200 1 NOSE STRUT 6682
Cessna 320 320 320-0001 320-0110 1 NOSE STRUT 7364
Cessna 320 320-1 320-0001 320-0110 1 NOSE STRUT 7364
Cessna 320 320A 320A0001 320A0047 1 NOSE STRUT 7364
Cessna 320 320B 320B0001 320B0062 1 NOSE STRUT 7364
Cessna 320 320C 320C0001 320C0073 1 NOSE STRUT 7364
Cessna 320 320D 320D0001 320D0130 1 NOSE STRUT 7364
Cessna 320 320E 320E0001 320E0110 1 NOSE STRUT 7364
Cessna 320 320F 320F0001 320F0045 1 NOSE STRUT 7364
Cessna 336 336 336-0001 336-0195 1 NOSE STRUT 7364

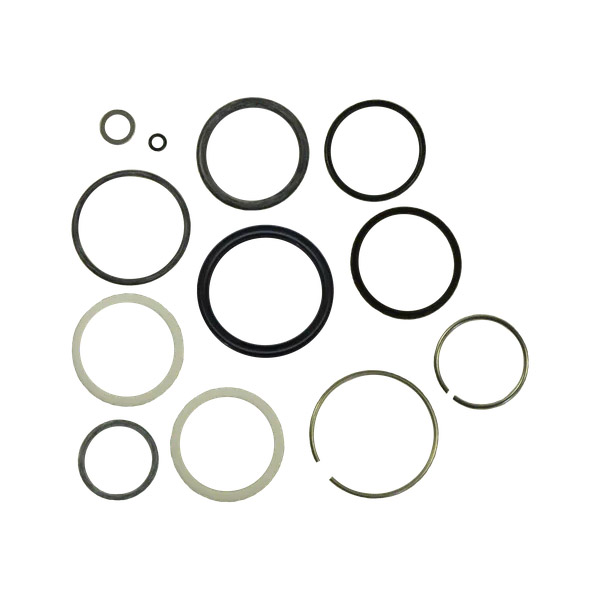

In The Box

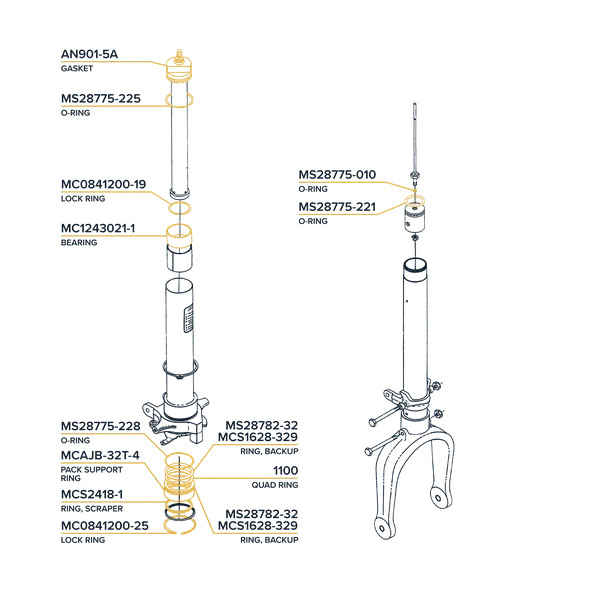

Kit Components MCSK172-2
QUAD RING, Nose Strut Seal 1100
GASKET AN901-5A
LOCK RING, Nose Strut MC0841200-19
LOCK RING, Nose Strut MC0841200-25
RING, Backup, Nose Strut MS28782-32
RING, Scraper, Nose Strut MCS2418-1
O-RING MS28775-010
O-RING MS28775-221
O-RING MS28775-225
O-RING MS28775-228
