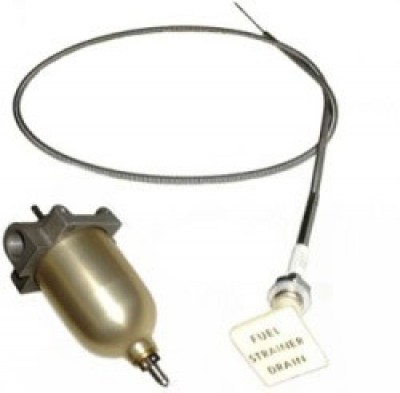

Fuel Strainer And Cable Kit For Cessna

$1472.00/Each
Quantity
Add to Wishlist
Part# 05-04112
MFR Model# FS-KT-5

Overview

Fuel strainer and cable kit for Cessna

Kit Contents
    (1) FS-KT-1 Gasket kit
    (1) MC0756008-1 Fuel bowl
    (1) MC0756015-1 Washer
    (1) MCS1573-3 Nut
    (1) MC0756010-11 Plunger
    (1) MC0756011-1 Standpipe
    (2) MCS1450-27A7-032 Washer
    (1) 0756012-1 Spring
    (1) MC0756005-2 Top Assembly
    (1) 0756009-1 Filter
    (1) MCS1517-7 Strainer drain cable
Maintenance Tip:
Cleaning the Fuel Screen - The fuel screen is removed by removing the standpipe. The rubber tipped plunger must be unseated before the standpipe is loosened. Failure to lift the plunger off of its standpipe seat can damage the plunger. Pull the strainer drain knob as if you were draining the fuel bowl. Block or clamp the knob in this position. Insert a smooth round tool such as a screwdriver or punch in the standpipe cross-hole and un-screw the standpipe.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Application Chart

Cessna  Model Beginning S/N Ending S/N
150E 15061153 15061532
150F 15061533 15064532
150G 15064533 15067198
150H 15067199 15069308
150J 15069309 15071128
150K 15071129 15072003
150L 15072004 15075781
150M 15075782 15079405
152 15279406 15286033
172F (T-41A) 17252534 17253392
172G 17253393 17254892
172H (T-41A) 17254893 17256512
172K 17257162 17259223
172L 17259224 17260758
172M 17263459 17267584
172M 17260759 17263458
172N 17267585 17274009
172P 17274010 17276654
172Q 17275869 17276211
172RG 172RG0001 172RG1191
177 17700001 17701164
177A 17701165 17701370
177B 17701371 17702752
180H 18051497 18052284
180J 18052285 18052384
180K 18052771 18053203
182L 18258506 18259305
182M 18259306 18260055
182N 18260056 18260825
182P 18260826 18262465
182Q 18265176 18267715
A150K A1500001 A1500226
A150L A1500227 A1500523
A150M A1500524 A1500734
A152 A1520735 A1521049
R182 R18200001 R18202041
T182 18267716 18268541
TR182 R18200584 R18202041

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this come assembled?

No this does not come assembled.
