McFarlane Cable & Chain Kit Cckt172175-13G

$3622.00/Each
Quantity
Add to Wishlist
Part# 05-04598
MFR Model# CCKT172175-13G

Overview

Complete flight control and trim chain kits for each of the 150 different cable groups required to service all single engine aircraft from the model 120 through model 185 airplanes. It is a tedious and time consuming job to research the part manuals for all of the cables required for a complete aircraft. McFarlane has done the research and has all of the part numbers required for your aircraft. You not only gain tremendous time savings with McFarlane cable kits, you receive substantial price discounts.

We carry all of the cables in either Galvanized-Carbon Steel or Stainless Steel. All components are fully traceable, high quality, and proof tested.

Stainless Steel or Galvanized Steel Cable?

Stainless steel is very corrosion resistant and works well in tough environments such as salt air, water saturation, or agricultural chemicals. Galvanized carbon steel and stainless cables are soaked in a Mil spec rust preventative and lubricating compound. In normal environments the galvanized cable will not suffer from corrosion damage for decades. The advantages of galvanized cable are its wear resistance and cost. It will resist abrasion wear four or five times longer than stainless steel as stainless steel wire is high in nickel and much softer than the carbon steel wire. Stainless steel cable will show signs of wire wear at pulleys and fairleads much quicker than the galvanized carbon steel wire and stainless steel cable costs about 30% more than galvanized carbon steel cable. We recommend using galvanized steel cables except in coastal geographical areas, agricultural aircraft, float planes, and other applications where the cable is exposed directly to water.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

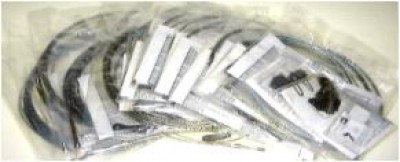

Kit Contents

Part Number DescriptionQtyUnit of Measure
MC0422280 BUSHING AILERON BELLCRANK 4EACH
MC0510105-208 CABLE (Elevator Forward) 2EACH
MC0510105-238 CABLE (Rudder Assembly RH) 1EACH
MC0510105-239 CABLE (Rudder Assembly LH) 1EACH
MC0510105-241 CABLE (Aileron Yoke Primary) 1EACH
MC0510105-242 CABLE (Aileron Yoke RH) 1EACH
MC0510105-243 CABLE (Aileron Yoke LH) 1EACH
MC0510105-244 CABLE (Aileron Yoke Transition1EACH
MC0510105-260 CABLE (Direct To Cabin Top) 2EACH
MC0510105-262 CABLE (Aileron Direct To Bellc2EACH
MC0510105-264 CABLE (Aileron Carry Thru LH) 1EACH
MC050105-265 CABLE (Aileron Carry Thru RH) 1EACH
MC0510105-278 CABLE (Parking Brake) 1EACH
MC0510105-290 CABLE (Elevator Aft Lower) 1EACH
MC0510105-291 CABLE (Elevator Aft Upper) 1EACH
MC0510105-44 CABLE (Trim Actuator To Turnbu1EACH
MC0510105-45 CABLE (Trim Actuator To Discon1EACH
MC0510105-93 CABLE (Flap Retract) 2EACH
MC0510105-94 CABLE (Flap Retract) 2EACH
MC0560051-4 CABLE (Trim Wheel To Turnbuckl1EACH
MC0560051-5 CABLE (Trim Wheel To Disconnec1EACH
MCS2294-25 LINK, Chain Connector 4EACH
MCS2295P25-59 CHAIN (Trim Wheel) 1EACH
MCS2295P25-67 CHAIN (Trim Actuator) 1EACH
