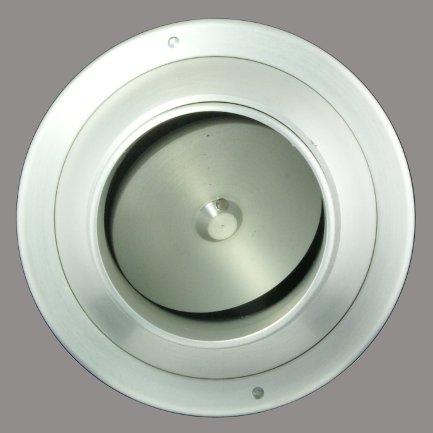

Steinair Eyeball Vent AV1625C - 1.75 Inch - Clear Aluminum

$179.95/Each
Quantity
Add to Wishlist
Part# 05-04086
MFR Model# AV1.625C

Overview

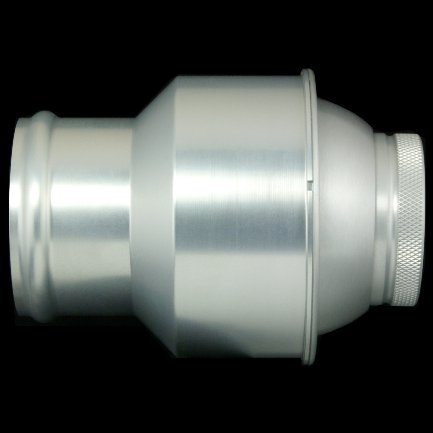

Anodized CLEAR. OD is 2 3/4" (hole size required for mounting). INCLUDES 2" Plenum Cup.

These eyeball vents are FAR SUPERIOR in their construction to those seen elsewhere and are of much higher quality. These are the highest quality vents that money can buy. For example, the Black Vents are 100% anodized aluminum....and unlike the overpriced and low quality vents produced elsewhere, these black vents don't require a "Plastic Flange" because of metal to metal contact . That's a sign of poor quality construction with metal on metal contact. These high quality vents have a nylon/delrin bushing encapsulated between the eyeball and the flange to protect the aluminum! On top of that, the larger vents sold elsewhere require a THREE INCH mounting pattern....4 Bolts which is much larger than need be. With these vents you simply cut a hole, install the vent and tighten the plenum or retaining nut behind it and hook up the tubing!

The vents include everything needed for install...no need to try and cobble together your own plenum or flange for scat tubing. On the small vents you can just directly attach a 2" scat tube to the vent - and on the large vents they have 2" plenums. These will come with a "BAC" part number on them, but that's because they are normally for the cockpits of fighters....you can figure out what the initials are for!

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Model Differences

  • For AV-125 1-1/4" Eyeball Vent, OD is 2" and allows for direct connection of a 2" scat tube.
  • For AV-1625 1-3/4" Eyeball Vent, OD is 2 3/4" and includes 2" Plenum Cup.
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

They work great, flow a lot of needed air.

Larry N
August 25, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do these Steinerair eyeball vents pivot?

Yes, the vents can move in a 360 degree pivot and be pointed in a specific direction.
