Aurora Bearing Am-5

$19.75/Each
Quantity
Add to Wishlist
Part# 04-00238
MFR Model# AM-5

Overview

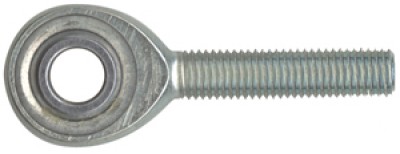

Aurora Bearing AM-5

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Thread type: Right hand
  • S Thread configuration: male
  • B-Ball Bore [inch]: .3125
  • W Ball Width [inch]: .437
  • H-Head Width [inch]: .344
  • A-Base to Center [inch]:1.875
  • D-Head Diameter [inch]:.875
  • Ball Diameter [inch]: .625
  • C-Thread Length [inch]: 1.250
  • Thread Size: 5/16-24
  • Thread Class: UNF-3A
  • a- Misalignment Angle Clevis Mounted [degrees]: 14
  • Ultimate Radial Static Load Capacity [lbs.]: .072
  • Approximate Brg. Weight [lbs.]: .072
  • Options: Stud
  • Lubrication Options: Zerk Fitting, Flush Fitting or Ptfe Liner
