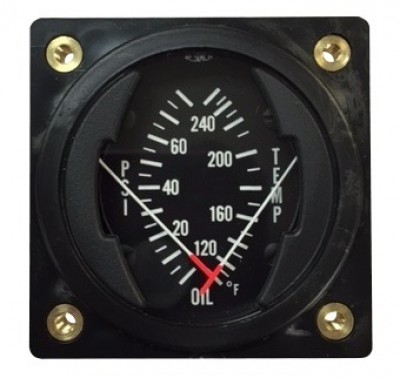

Westach 2-1/4 Dual Oil Pressure / Oil Temp Gauge

$595.00/Each
Quantity
Add to Wishlist
Part# 10-00796
MFR Model# 158592DA3KV

Overview

Westach Dual Kit 2DA3KV. Oil Pressure / Temp, 0-80 PSI and 100-260 degrees F, with 387-100 KV, 39959.

Includes oil pressure transducer and 399S9-5/8 oil temp sender.

Made in USA

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

My old Westach oil pressure sensor was inop after an engine overhaul so I had to buy a whole new set of pressure / temperature sensors and gauge to get running again. No single component sales, like the pressure sensor only. BTW the new pressure sensor has only 3 wires instead of 4. Works great.

Brad L
April 14, 2018

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this kit come with wiring, temp probe and pressure sender?

Yes this dual gauge included wire and both oil pressure and temp probes.

Q: What is the max PSI in this instrument?

The PSI range for this instrument is 0-80 PSI.

Q: Will this Westach gauge work without an electrical system in the plane?

No, this gauge requires voltage (8-30 volts) to operate.

Q: Is it possible to order the 399S9-5/8 oil temp Sender separately?

Yes, this is part number 10-04540.

Q: Is this WESTACH 2-1/4 DUAL OIL PRESSURE / OIL TEMP GAUGE FAA TSO approved?

No, this gauge is not FAA TSO Approved. Experimental aircraft applications only.

Q: I need the oil pressure transducer, where can I buy one?

This gauge includes the transducer. If you need a replacement, please use transducer part number 10-02640.

Q: Are the mounting holes tapped to take screws? If so what gauge and thread form are they?

The mounting holes are tapped for 6-32 screws, quantity 4 required.

Q: Do both sensors/senders fit in 1/8 NPT threaded holes?

The oil pressure sender it comes with is for Lycoming/Continental engines and has a 5/8 NPT thread.

Q: Are these backlit?

No, these gauges are not backlit.
