RV8 Travel Jack For Grove Gear

$375.00/Each
Quantity
Add to Wishlist
Part# 12-03243
MFR Model# GROVE GEAR

Overview

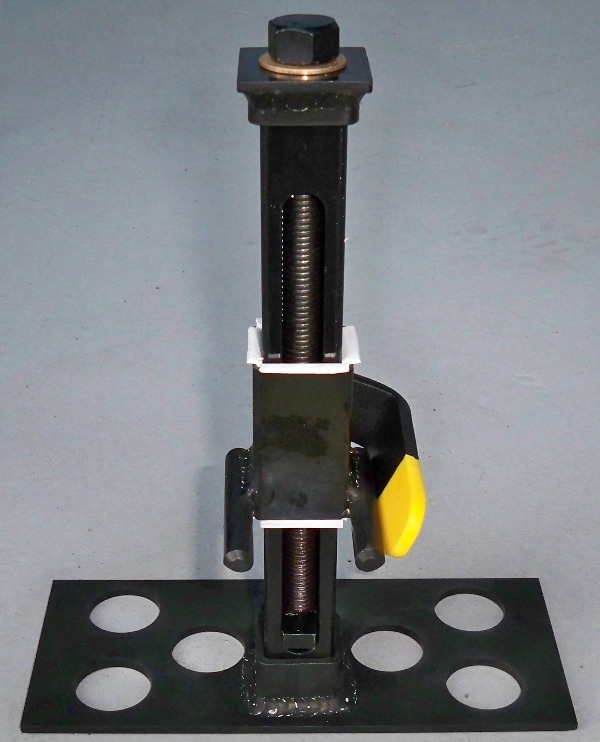

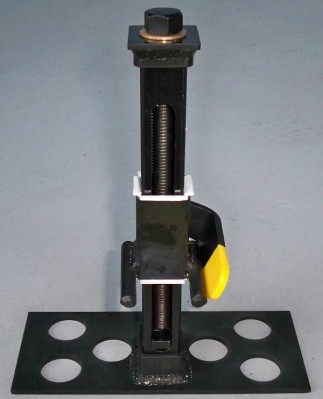

The RV 8 Travel Jack was designed and manufactured by RV-8 builder / pilot Steve Jackson. All steel construction, weighs less than 3 pounds. Jack mast easily removes from base plate for compact storage.

Uses 3/4" wrench to operate (wrench not included). Tested to 1350 pounds. Has securing arm that positions between the gear leg & brake to stabilize the jack works on both left and right gear leg with a simple adjustment.

Base measures 3-1/2" X 8"; mast stands 10" tall. Designed for RV-8 flat spring gear legs (only -- will not work on the other RVs with round gear legs).

Attention: Works with Cleveland & Matco Brake Systems


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Weight: 2.75 lbs.
  • Base: 3 1/2" x 8"
  • Mast Stands: 10" tall
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Reference: RV 8 TRAVEL JACK FOR GROVE GEAR Part # 12-03243: Will this jack work with the Grove airfoiled gear and/or on the straight bar standard gear?

Per the supplier: The Grove gear RV8 Jack works with the Grove gear as long as it has the Cleveland brakes supplied by Vans Aircraft. It does not work with Grove brakes.
