RV6 Piece Dimple Die Set Screw Size Kit

$113.90/Each
Quantity
Add to Wishlist
Part# 12-00565
MFR Model# 12-00565

Overview

This dimple die set was designed especially for use in the construction of the Vans RV aircraft series, and is ideal for a variety of other aircraft as well. All the riveting sets are made from heat treated stainless steel.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

In The Box

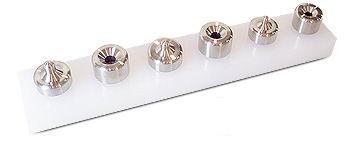

  • Set holder block, springback dimple dies for #6, #8, & #10 screws. To be used with pneumatic or hand rivet squeezer.

Reviews

good fit and finish.

Craig W Verified Purchase

Airbolt Dimple Die Screw Set

June 20, 2023

Makes great dimples. What else can I say.

Mel H
October 12, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are there meant for screws as the name implies? If yes, what are the sizes? The description mentions rivets which is a bit confusing. Im looking for dimple dies for #6, #8 and #10 screws.

This is a dimple die set for 6-32, 8-32, and 10-32 screws.

Q: Is there a single #10 screw dimple die set that can be purchased?

No, we do not carry these as a one off.

Q: Confirm these are for making countersink dimples in sheet metal so that flat head screws will sit flush. If so what is the countersink angle?

Yes that is correct. They are 100 degree.
