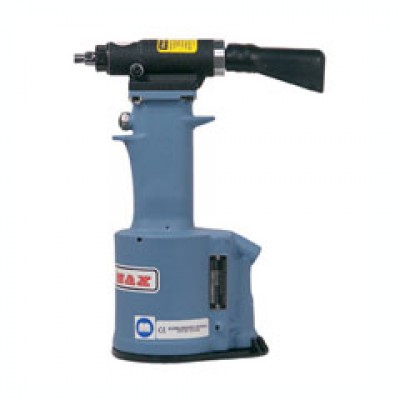

Power Riveter G746A

$2195.00/Each
Quantity
Add to Wishlist
Part# 12-02991
MFR Model# G746A

Overview

The G746A is a pneumatic-hydraulic tool designed specifically for installation of CherryMAX Bulb, CherryMAX 'AB' wiredraw and CherryLOCK 'A' wiredraw rivets. Its durable, all metal housing makes this tool ideal for use in rugged shop environments.

This tool utilizes straight, offset and right angle pulling heads.

A comfortable grip for one handed operation in any position.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Air Pressure: 90 PSI (6.2 bar) min./110 PSI (7.6 bar) max.
  • Cycle Time: approximately one second
  • Noise Level: 72 dB (A)
  • Vibration: less than 2.5 m/s2
  • Air Consumption: .25 SCF / cycle (7.08 L / cycle)
  • Stroke: .875"
  • Pulling Force: 1,850 lbs (839 kgs)
  • Weight: 4.25 lbs (1.9 kgs)

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the country of origin for this Power riveter G746A?

This product is made in the USA.
