Power Riveter G704B

$2085.00/Each
Quantity
Add to Wishlist
Part# 12-02986
MFR Model# G704B

Overview

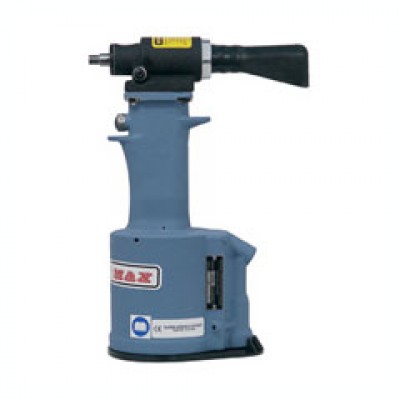

The G704B is a pneumatic-hydraulic tool designed especially for installation of CherryMAX and nut plate rivets. Its durable, all metal housing makes this tool ideal for use in rugged shop environments.

This tool utilizes straight, offset and right angle pulling heads, all of which can install -4, -5 and -6 diameter CherryMAX bulb type rivets in all head styles, materials and grip lengths. Extensions are available for extending the pulling heads to reach limited access areas.

A comfortable grip for one handed operation in any position.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Air Pressure: 90 PSI (6.2 bar) min./110 PSI (7.6 bar) max.
  • Cycle Time: approximately one second
  • Noise Level: 71 dB (A)
  • Vibration: less than 2.5 m/s2
  • Air Consumption: .16 SCF / cycle (4.53 L / cycle)
  • Stroke: .510"
  • Pulling Force: 3,100 lbs (1,406 kgs)
  • Weight: 4.25 lbs (1.9 kgs)
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Regarding the CherryMax 704B rivet gun (part # 12-02986): Is this unit .... (a) Factory New, (b) Reconditioned unit, or (c) Factory Second unit?

This rivet gun is factory new.

Q: How much is a reconditioned G704B?

We do not carry this in reconditioned, only new outright.

Q: Regarding the G704B Riverter (part#12-02986): Is this unit include nosepieces?

This is just the tool, there are no nose pieces included.
