Overview

Our M12 FUEL™ 1/4" High Speed Ratchet Kit is part of the latest addition to our best-in-class lineup of ratchets. This MILWAUKEE® cordless ratchet kit features the fastest speed while installing and removing fasteners. The most compact head size in its class gives you more access in tight spaces. A steel yoke housing and POWERSTATE™ Brushless Motor deliver the superior durability that you expect from Milwaukee. The M12 FUEL™ High Speed Ratchets are an ideal addition to any technician tool chest, allowing you to be more productive than any other battery-powered ratchet.

	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

• 1 - REDLITHIUM™ Battery Pack: REDLITHIUM™ Batteries last longer, think faster, and work harder than all other professional LITHIUM-ION batteries. Built to withstand the harshest environments, REDLITHIUM™ batteries deliver more work over the course of your day and over the life of the battery.
• 2 - REDLINK PLUS™ Intelligence: Milwaukee's game-changing REDLINK PLUS™ Intelligence hardware and software is the most advanced system of cordless power tool electronics. REDLINK PLUS™ Intelligence integrates full-circle communication between tool, battery and charger. REDLINK PLUS™ Intelligence is technology that all power tools crave, but only a Milwaukee¨ provides.
• 3 - POWERSTATE™ Brushless Motor: Designed, engineered and built by Milwaukee®, POWERSTATE™ is the best-in-class brushless motor that works harder and lives longer than all leading competitors. POWERSTATE™ brushless motors are ideal for professional tradesmen because they deliver more application speed, torque and durability in a smaller size.

Specifications

• Battery Specs:
• Voltage: 12V
• Battery Type: 12 Volt Lithium Ion
•

• Product Specs:
• Wrench Type: High Speed
• Anvil Type: Ball Detent
• Maximum Torque: 30 ft/lbs
• Fastening Torque: 35.0 ft/lbs
• Head Profile: 0.8 in
• Tool Warranty: 5 Year Tool, 2 Year Battery
• Power Source: Cordless
• Motor Type: POWERSTATE™ Brushless
• Length: 11.1 in
• Weight: 2.1 lb
• Height: 0.75 in
• Width: 1.54 in
• Anvil Size: 1/4" Square
• Brushless: Yes
• Battery System: M12
• Chuck Type: Not Applicable
• Chuck Size: Not Applicable
• Maximum RPM: 450 rpm

Benefits

• Delivers up to 450 RPM for best-in-class productivity
• 0.75" head profile allows for best-in-class access in tight spaces
• Up to 35 ft-lbs. of max torque
• Steel yoke housing for greater durability
• Ratchet can be used manually without engaging the motor
• LED light to illuminate work areas
• On-board battery fuel gauge displays remaining run time
• Extended paddle switch for multiple grip options
• Durable proprietary rubber designed to withstand corrosive materials commonly found in maintenance environments
• POWERSTATE™ Brushless Motor provides more power, more run-time, and longer life
• REDLINK PLUS™ Intelligence prevents damage to the tool and battery due to overloading or overheating
• REDLITHIUM™ batteries deliver more work per charge and more work over the life of the battery Part of the M12™ system, featuring 100+ tools

Documents

• Operator Manual (PDF)
• Service Parts List (PDF)

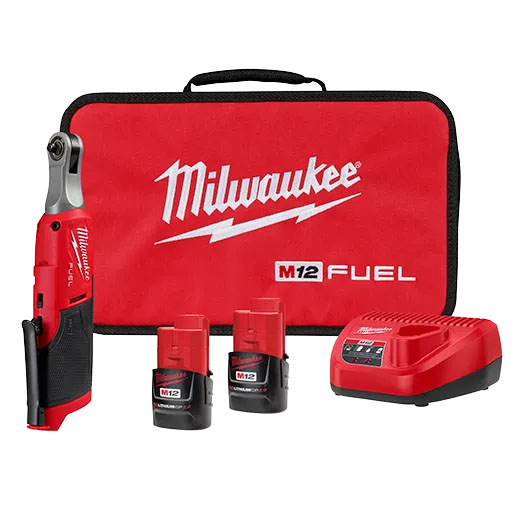

In The Box

• (1) M12 FUEL™ 1/4" High Speed Ratchet(2566-20)
• (2) M12™ REDLITHIUM™ CP2.0 Battery(48-11-2420)
• (1) M12™ Lithium-ion Battery Charger (48-59-2401)
• (1) Soft Carrying Case
