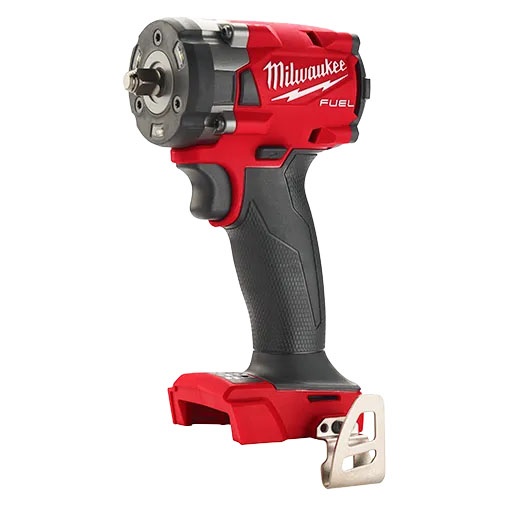

M18 FUEL™ 3/8 Inch Compact Impact Wrench w/ Friction Ring Bare Tool

$238.00/Each
Quantity
Add to Wishlist
Part# 12-06093
MFR Model# 2854-20

Overview

Our M18 FUEL™ 3/8" Compact Impact Wrench w/ Friction Ring is the most compact in its class, delivering you the most access in tight spaces, up to 250 ft-lbs of nut-busting torque, and maximum workspace visibility. This battery-powered impact wrench measures only 4.8" in length with a POWERSTATE™ Brushless motor to provide the power to remove stubborn fasteners, even in confined spaces.

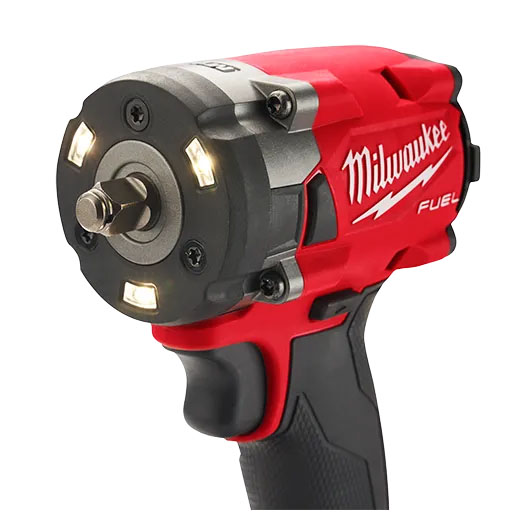

The MILWAUKEE® 3/8" Compact Impact Wrench has tri-LEDs that surround the anvil to deliver you brighter light with fewer shadows. 4-Mode DRIVE CONTROL™ offers greater precision with a range of pre-set RPM and IPM levels, selectable from a single button on the tool. By selecting Mode 4, AUTO SHUT-OFF™ control applies no more than 20 ft-lbs of torque for hand-tight fastening applications to prevent overtightening. Mode 4 also features Bolt Removal Control delivers full torque output, then decreases RPMs once the bolt is loosened to prevent fastener drops.

REDLINK PLUS™ Intelligence electronics make these controls possible while ensuring maximum performance, protecting the tool against overloads, over-heating, and over-discharge. The M18™ REDLITHIUM™ battery pack (not included) fits M18™ tools, delivering more work per charge and more work over the life of the pack.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

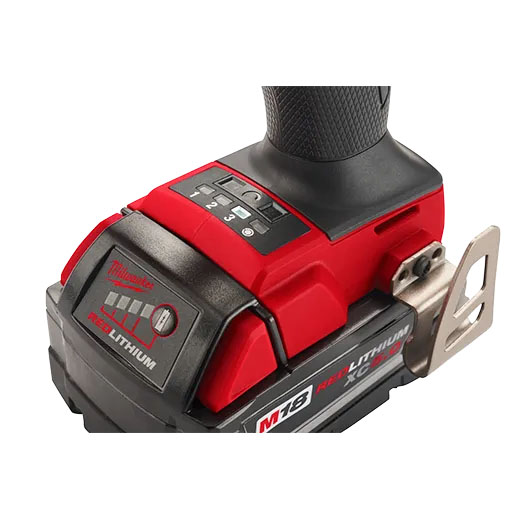

  • 1 - REDLITHIUM™ Battery Pack: With the REDLITHIUM™ Battery Pack, Milwaukee M18™ power tools work like they should - faster, longer and with fewer recharges. The M18™ cordless power tools, maximizes performance, delivering more run-time, power and recharges than other lithium-ion battery packs.

  • 2 - REDLINK PLUS™ Intelligence: Milwaukee's game-changing REDLINK PLUS™ Intelligence hardware and software is the most advanced system of cordless power tool electronics. REDLINK PLUS™ Intelligence integrates full-circle communication between tool, battery and charger. REDLINK PLUS™ Intelligence is technology that all power tools crave, but only a Milwaukee¨ provides.

  • 3 - POWERSTATE™ Brushless Motor: Designed, engineered and built by Milwaukee®, POWERSTATE™ is the best-in-class brushless motor that works harder and lives longer than all leading competitors. POWERSTATE™ brushless motors are ideal for professional tradesmen because they deliver more application speed, torque and durability in a smaller size.

Specifications

  • Wrench Type: Compact
  • Anvil Type: Friction Ring
  • IPM: 0 - 3,500 ipm
  • Maximum Torque: 250 ft/lbs
  • Fastening Torque: 250 ft/lbs
  • Nut-Busting Torque: 250 ft/lbs
  • Tool Warranty: 5 Year Limited Warranty
  • Power Source: Cordless
  • Motor Type: POWERSTATE™ Brushless
  • Material Composition: Aluminum
  • Length: 4.8 in
  • Weight: 3.9 lb
  • Height: 7.95 in
  • Width: 2.56 in
  • Brushless: Yes
  • Battery System: M18
  • Chuck Type: Not Applicable
  • DRIVE CONTROL: 4-Mode w/ Auto Shut-Off Mode & Bolt Removal Mode
  • Chuck Size: Not Applicable
  • Maximum RPM: 2400 rpm
  • Peak Torque: 250 ft-lbs
  • RPM Range: 0 - 2,400 rpm

Benefits

  • 4.8" in length provides most access in tight spaces
  • The POWERSTATE™ brushless motor delivers up to 250 ft-lbs. of nut-busting torque.
  • Tri-LEDs deliver high definition lighting to increase workspace visibility with less shadows.
  • 4-Mode DRIVE CONTROL™ provides greater control over output speed and power. Includes auto shut-off and bolt-removal mode.
  • Auto shut-off mode prevents over tightening and increases productivity by applying no more than 20 ft-lbs. of torque.
  • Bolt-removal mode offers more control after bolt breakaway as RPMs drastically slow down once the bolt is loosened.
  • Mode 1 RPMs: 0-800; Mode 2 RPMs: 0-1,650; Mode 3 RPMs: 0-2,400; Mode 4 RPMs: 0-2,400 Mode 1 IPMs: 0-1,000; Mode 2 IPMs: 0-2,400; Mode 3 IPMs: 0-3,500; Mode 4 IPMs: 0-3,500
  • REDLINK PLUS™ Intelligence ensures maximum performance and protects from overloads, heating and over-discharge
  • Works in up to to 69kV environments
  • Compatible with all M18™ batteries & Chargers

Documents

In The Box

  • (1) M18 FUEL™ 3/8 " Compact Impact Wrench w/ Friction Ring Kit(2854-20)
