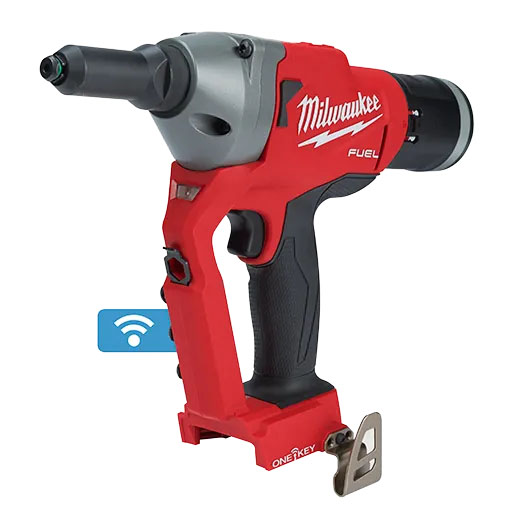

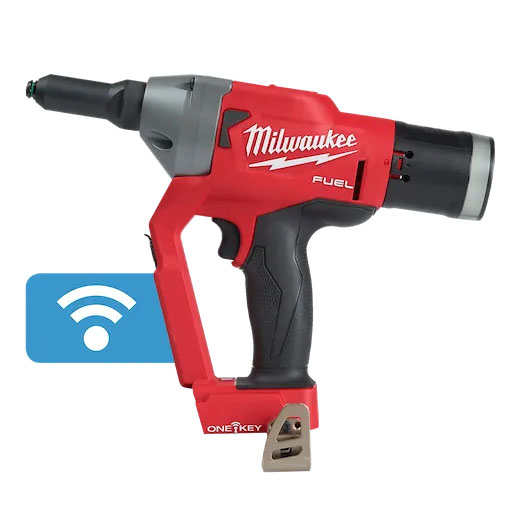

Milwaukee M18 Fuel™ 1/4 Inch Blind Rivet Tool w/ ONE-KEY™

$1143.00/Each
Quantity
Add to Wishlist
Part# 12-06367
MFR Model# 2660-20

Overview

Our M18 FUEL™ ¼” Blind Rivet Tool w/ ONE-KEY™ is the fastest cordless rivet tool. It eliminates the need for hoses and compressors while delivering up to 3X longer life than other cordless riveters.

This rivet gun significantly increases productivity, installing rivets up to 50% faster than cordless competitors. The premium steel alloy 3-jaw design delivers more work between jaw changes. While lightweight, this Milwaukee rivet gun was designed to withstand harsh shop or assembly plant environments, manufactured with an all-metal gearcase, impact strength plastics, and protective over-mold. The POWERSTATE™ Brushless Motor delivers 4,500 lbs. (20kN) of pulling force for high strength blind rivets in all materials.

This rivet tool pulls up to 900 3/16” aluminum or 500 1/4” aluminum blind rivets on one charge with an M18™ REDLITHIUM™ CP2.0 battery (not included). M18™ REDLITHIUM™ Battery Packs fit M18™ tools, providing you with more work per charge and more work over the battery life. REDLINK PLUS™ Intelligence ensures maximum performance and protects the rivet tool and battery against overloads, over-heating, and over-discharge. The MILWAUKEE® M18 FUEL™ ¼” Blind Rivet Tool with ONE-KEY™ compatibility, allowing you to track and manage your tool.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • 1 - REDLITHIUM™ Battery Pack: With the REDLITHIUM™ Battery Pack, Milwaukee M18™ power tools work like they should - faster, longer and with fewer recharges. The M18™ cordless power tools, maximizes performance, delivering more run-time, power and recharges than other lithium-ion battery packs.

  • 2 - REDLINK PLUS™ Intelligence: Milwaukee's game-changing REDLINK PLUS™ Intelligence hardware and software is the most advanced system of cordless power tool electronics. REDLINK PLUS™ Intelligence integrates full-circle communication between tool, battery and charger. REDLINK PLUS™ Intelligence is technology that all power tools crave, but only a Milwaukee¨ provides.

  • 3 - POWERSTATE™ Brushless Motor: Designed, engineered and built by Milwaukee®, POWERSTATE™ is the best-in-class brushless motor that works harder and lives longer than all leading competitors. POWERSTATE™ brushless motors are ideal for professional tradesmen because they deliver more application speed, torque and durability in a smaller size.

Specifications

  • Tool Warranty: 3 Year Limited Warranty
  • Power Source: Cordless
  • Length: 12.5 in
  • Weight: 4.66 lb
  • Height: 9.5 in
  • Width: 2.5 in
  • Rivet Sizes: 3/16", 7/32", 1/4", 9/32"
  • Rivet Material:Aluminum, Steel, Stainless Steel
  • Pull Force: 4,500 lbs
  • Stroke Length: 1.18"
  • Nose Reach: 3.13"
  • Length with Mandrel Collector: 12.5"
  • Length without Mandrel Collector: 10.13"
  • Battery System: M18

Benefits

  • Up to 50% faster than cordless competitors
  • Maximum tool and jaw durability provide up to 3X longer life
  • Eliminates compressors and hoses providing lower cost of ownership, greater productivity, more portability and more safety
  • Installs 3/16" (4.8mm), 7/32" (6.0mm), 1/4" (6.4mm) and 9/32" (7.0mm) aluminum, steel, and stainless steel rivets
  • Installs up to 500 1/4" aluminum blind rivets on one REDLITHIUM™ CP 2.0Ah battery charge
  • POWERSTATE™ Brushless Motor delivers 4,500 lbs. (20kN) of pulling force for high strength blind rivets in all materials
  • 1.18" stroke length
  • Weighs only 5.6 lbs. with REDLITHIUM™2.0Ah battery
  • Only 12.5" in length including the mandrel collector
  • ONE-KEY™ Compatible: Ability to Track and Manage tools for increased productivity and investment protection
  • Premium rubber over-mold withstands corrosive materials and provides increased comfort when in use
  • Compatible with all M18™ batteries and chargers

In The Box

  • (1)M18 FUEL™ 1/4" Blind Rivet Tool w/ ONE-KEY™ Bare Tool(2660-20)
  • (1)M18 FUEL™ 1/4" Blind Rivet Tool w/ ONE-KEY™ Jaw Set(49-16-2660JS)
  • (1)M18 FUEL™ 1/4" Blind Rivet Tool w/ ONE-KEY™ Retention Nose Piece 4-Pack(49-16-2660RP)
  • (1)Nose Piece Wrench
  • (1)Mandrel Collector
  • (1)Hanging Ring
  • (1)Belt Clip
