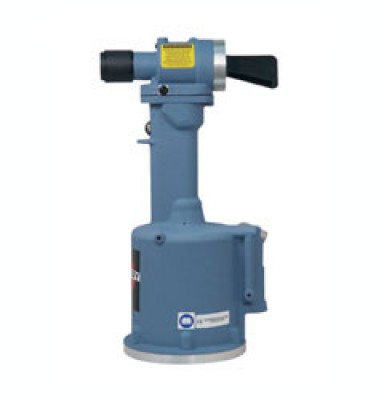

Lockbolt Heavy-Duty Power Riveter G87D

$3862.00/Each
Quantity
Add to Wishlist
Part# 12-03016
MFR Model# G87D

Overview

The G87D pneumatic-hydraulic tool is a heavy-duty production tool designed for high speed, reliable installation of the most popular sizes of aircraft Lockbolts. Its durable, all metal housing makes this tool ideal for use in rugged shop environments.

By bending the rubber pin deflector sideways, 1-1/2" additional clearance can be obtained. This tool can also be used to install blind bolts and blind rivets.

A comfortable grip for one handed operation in any position.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Air Pressure: 90 PSI (6.2 bar) min./110 PSI (7.6 bar) max.
  • Noise Level: 74.2 dB (A)
  • Vibration: less than 2.5 m/s2
  • Air Consumption: .60 SCF / cycle (17 L / cycle)
  • Stroke: 9/16"
  • Pulling Force: 9,500 lbs (4,309 kgs)
  • Weight: 10.75 lbs (4.9 kgs)

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this LOCKBOLT HEAVY-DUTY POWER RIVETER G87D sold with pulling heads?

This does not come with pulling heads.
