Corner Lug Plate Nut Drill Jig

From $54.75 to $54.80

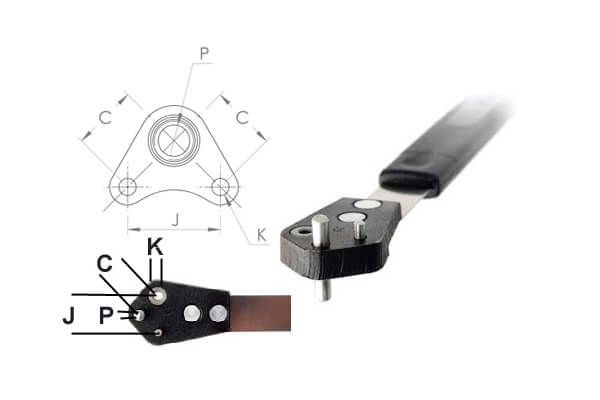

Mfr. PN Nut Thread
Reference
(C) Hole
Spacing
(J) Hole
Spacing
(P) Pilot
Diameter
(K) Drill
Size
Part Number Price Buy
NPJ518S8-320.3440.4860.1640#40
12-04797
$54.75
Quantity
NPJ518T10-320.3440.4860.1910#40
12-04798
$54.80
Quantity
NPJ518U1/4-280.5000.7070.2480#40
12-04799
$54.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Corner Wing Standard Nut Plate Drill Jig (CWS) Features:

  • Corner Wing Standard Nut Plate Drill Jigs are designed to facilitate accurate rivet hole drilling for standard plate nuts.
  • Nut Plate Drill Jigs are known as Anchor Nuts Or Nut Plates.
  • Omega Technologies' hand-held Nut Plate Drill Jigs are manufactured to precise tolerances and include drill bushings to reduce wear and assure consistent hole-spacing.
  • Every Nut Plate Drill Jig features an ergonomically designed handle with a flexible stainless spring blade, allowing for clearance while the jig is in use.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
