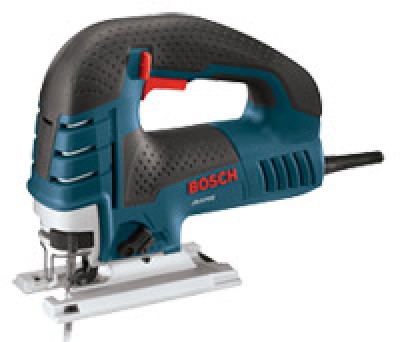

Bosch Top Handle Jigsaw

$198.95/Each
Quantity
Add to Wishlist
Part# 12-03215
MFR Model# JS470E

Overview

Toolless Blade-Change System – Fast insertion, blade ejection lever eliminates need to touch hot blade. Most secure jigsaw clamping system.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Powerful 7.0-Amp Jigsaw – Top jigsaw amp rating.
  • Variable speed - Dial sets maximum speed and accelerator trigger controls operating speed.
  • Constant Response™ circuitry – Maintains desired speed for consistent performance and precision.
  • Aluminum gearbox with insulated cover
  • Toolless Blade-Change System – Fast insertion, blade ejection lever eliminates need to touch hot blade. Most secure jigsaw clamping system.
  • Internal Precision Control - Precision-machined plunging system and low-vibration design for enhanced accuracy and extremely smooth operation.
  • Large, sturdy die-cast foot with steel insert and on-board bevel wrench.
  • Exclusive multi-directional blade clamp provides superior grip of T-shank blades. (JS470E does not accept U-Shank blades)
  • Four orbital-action settings -Different blade strokes for smooth to aggressive cuts.
  • Adjustable dust blower keeps cutting line clear.
  • Ergonomic top handle with soft-grip areas for solid, comfortable grip.
  • Ambidextrous lock-on button – For steady long cuts and user comfort and control.

Specifications

  • Amperage - 7.0
  • Bevel Angle Range - 45°
  • Category - Jig Saws
  • Cutting Capacity Soft Wood - 5-7/8"
  • Cutting CapacityAluminum - 7/8"
  • Cutting CapacityMild Steel - 3/8"
  • Hertz - 60 Hz
  • Manuals - JS470E, JS470EB (EN) #19210 (D#19210)
  • Max. Bevel Cut - 45°
  • No Load SPM - 500-3,100
  • Rating - 120V
  • Service Baretool Numbers - 3601E13010
  • Serviceable - Yes
  • Stroke Length - 1"
  • Weight (lbs.) - 5.90
