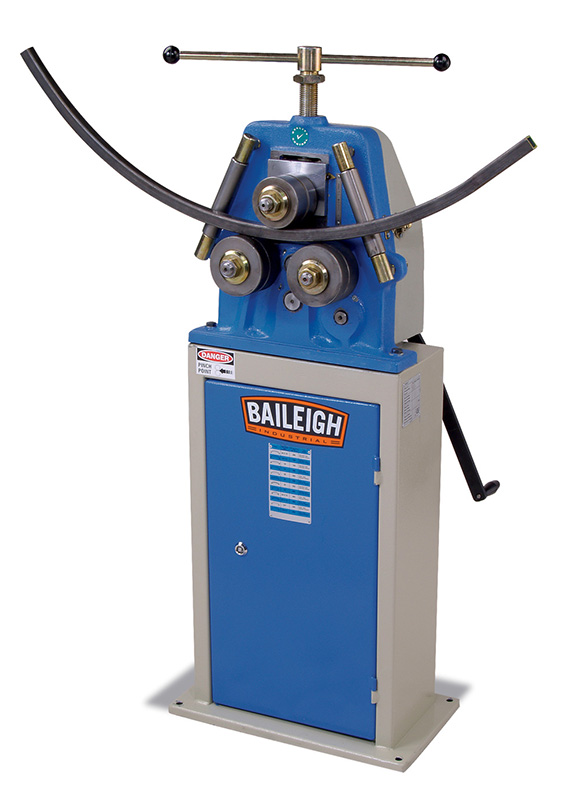

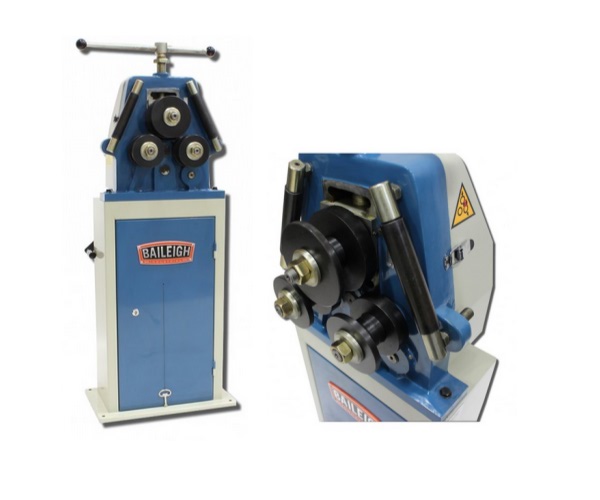

Baileigh Manual Roll Bender R-M10

0 Reviews 0 Answered Questions
$2520.00/Each
Quantity
Add to Wishlist
Part# 13-08977
MFR Model# 1006846

Overview

This manually powered roll bender is capable of rolling full circles because of its open face design. The R-M10 can do anything that the larger models of roll benders can. The only difference is that The R-M10 is manually powered, but it does have a reduction gearbox to assist in the bending functions.

The R-M10’s powerful manual drive system has a maximum capacity of 1-1/4” (.078” wall) round tubing capacity in mild steel. All rolling shafts on the R-M10 angle roll are hardened and turn on bronze bushings ensuring long life and great wear characteristics. The head is made of strong cast steel and machines to exacting tolerances. The included base has a useful storage cabinet. The R-M10 comes standard with segment rolls that allows for many different types of flat bar, some angle iron and some square to be rolled.

Capacity / Size / Diameter

  • Pipe - 1 " (Sch.40) / 28" dia
  • Round Tube - 1.25"(.078") / 31.5" dia
  • Square Tube - 1.2" (.078") / 35" dia
  • Angle Iron - 1.25" (.157") / 30" dia
  • Solid Square - .75" / 20" dia
  • Solid Round - .875" / 20" dia
  • Flat Bar Easy Way - 2" / 15.75" dia
  • Flat Bar Hard Way - .75" / 6.5" dia
    All Specs based on 60,000 PSI (42 kg/mm2) Tensile Strength - Mild Steel
    Specs are to be used as a base line for purchase purposes only.
    Baileigh Industrial cannot control Variations in Material.

Technical Specifications and Standard Equipment

  • Two rolls are manually powered
  • Special cast frame
  • Shafts are hardened with special steel material
  • Rolls are special steel material hardened and ground
  • Gears milled with full material
  • Standard rolls, guide rollers, manual working
  • Users manual

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Item Number R-M10
  • Roll Adjustment Manual
  • Pipe Capacity Size: 1" (sch. 40) / Min. Dia.: 28"
  • Round Tube Capacity Size: 1.25" (.078") / Min. Dia.: 31.5"
  • Square Tube Capacity Size: 1.25" (.078") / Min. Dia.: 35"
  • Solid Round Capacity Size: .875" / Min. Dia. 20"
  • Flat Bar Easy Way 2" Thick / Min Dia. 15.75"
  • Flat Bar Hard Way .75" Thick / Min Dia. 6.5"
  • Angle Iron Capacity Size: 1.25" (.157") / Min. Dia.: 30"
  • Shaft Diameter 1.181"
  • Shaft Center Distance 6.7"
  • Lower Roll Dia. 4.65"
  • Pinch Single
  • Power Manual
  • Shipping Weight 435 lbs.
  • Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
  • Shipping Dimensions 60" x 44" x 68"
  • Specifications subject to change without notice.
