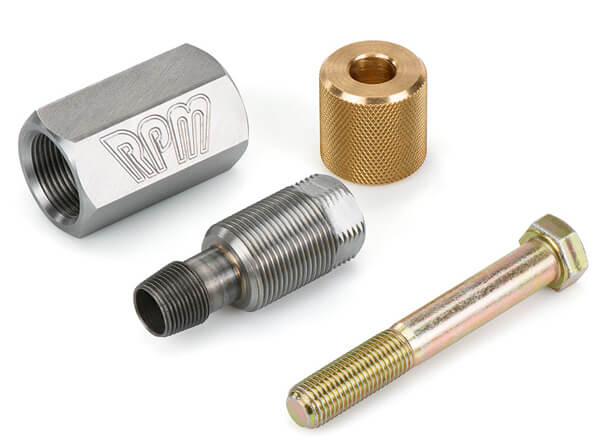

Tach Drive Seal Remover
MFR Model# RPM-01
FREE Shipping
Overview
| This straight forward tool will let you remove the tach seal in minutes time and time again. The seal removal tool is so easy to use, it’s as easy as counting to five! One: remove the vacuum pump to give the tool plenty of room to work. Two: thread the alignment sleeve onto the housing as well as the puller. A 3/4” wrench is helpful here. Three: adjust the alignment sleeve so it can rotate freely. Four: install the slide hammer and bolt. Five: Firmly impact the bolt head with the slide to bring the seal out. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Specifications
- 2 lbs (1Kg) shipping weight.
Videos
Reviews
Did not work as advertised. Feel like sending it back and asking for a refund. Ended up having to pull the accessory case.
Verified Purchase
ATS Tachometer Drive Seal Remover
Works as advertised. Definitely the best way to remove the seal with the engine still in the mounts. Watch the video first. Be aware that its a little more difficult to do than shown in the video. Its not going to pop out on the first hit with the slide hammer like it shows in the video, but it will come out.
Really a big time saver with no ill side effects. Easy to use, very well built and well thought-out design. Be sure to watch the youtube video before your first try. https://youtu.be/3ir1iWEsapM
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Part # 12-04820 is not designed to accommodate the tach drive seal on the Continental IO-360. That tach drive is configured differently.
The tool is for removing tach drive seals only on Lycoming O-235 through O, IO and TIO-540 series engines. Most all of the Continental engines have removable housing and the seals can be driven out and replaced.
