Home / Rotax Engines & Parts / Parts / 912iS Series / Control Units /Rotax 912 iS Engine Control Unit | Fuse Box Regulator
Main Image

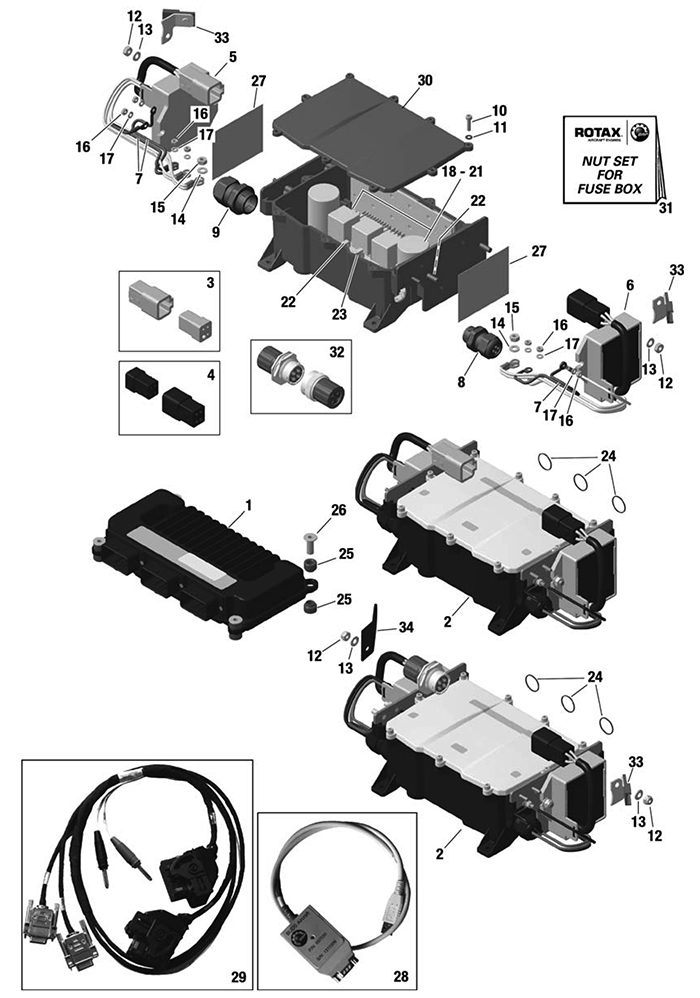

Rotax 912 iS Engine Control Unit | Fuse Box Regulator

0 Reviews 0 Answered Questions
From $0.62 to $2.17
Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Part Number Description Qty 912 iS Qty 912 iS Sport PN Price Buy
13244-214WASHER 6.444
15-00230
$0.62
Quantity
18866-450MINI FUSE 2A22
15-09203
$2.17
Quantity
19866-452MINI FUSE 5A1010
15-09204
$2.17
Quantity
20866-454MINI FUSE 7.5A22
15-09205
$2.17
Quantity
21866-456MINI FUSE 10A55
15-09206
$2.17
Quantity
22866-490ATO-FUSE 20A11
15-09207
$2.17
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a   Engine control unit with software SW 25. See SB-912 i-002iS. Only for model 912 iS.
  • b   Engine control unit with software SW 29. See SB-912 i-002iS. Only for model 912 iS.
  • c   Engine control unit with software SW 130. Only for model 912 iS Sport.
  • d   Connector set consisting of all parts for regulator and stator side
  • e   With M6 thread at regulator B
  • f    Consists of: 6x 242539 (lock nut M4), 6x 244078 (washer 4.3), 3x 244214 (washer 6.4), 3x 842044      (lock nut M6)
  • g   Connector gray
  • h   Connector black iwith Amphenol connector


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Notes

No.
Status
Part No.
 Description
912iS
912iS Sport
Price
1
 n.a. 881-250 ENGINE CONTROL UNIT ASSEMBLY WRAPPED
1a
*
1
 s.v. 881-251 ENGINE CONTROL UNIT ASSEMBLY WRAPPED
1b
*
5
   864-395 REGULATOR B CONNECTOR BLACK
1
1
*
6
   864-392 REGULATOR A CONNECTOR BLACK
1
1
*
24
   931-110 SEALING RING
3
3
*
25
   201-460 RUBBER SLEEVE
8
8
*
26
   947-540 SPACER
4
4
*
27
   282-870 HEAT TRANSFER PAD
2
2
*
30
   201-690 COVER
1
1
*
