Multi-Carrier Hydraulic Ground Handling Wheels For Helicopters

From $3549.00 to $5287.00
Model Number Aircraft Part Number Price Buy
BDW-206LRHBell 206L, 407, 427
13-16068
$3549.00
Quantity
BDW-ATHEurocopter AS350, AS355
13-16077
$3745.00
Quantity
BDW-E130HEurocopter EC-130
13-16079
$4759.00
Quantity
BDW-MDHMD600, MD900
13-16082
$5287.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

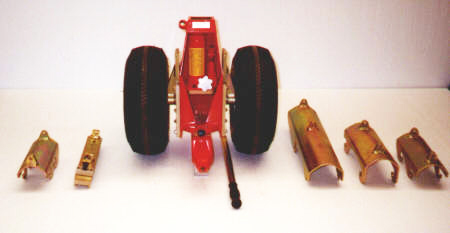

This hydraulic frame P.N. BDW-HUF-00 is designed with changeable carriers to fit different model helicopters. The idea is to reduce the cost for operators or maintainance facilities that are required to service a mixed fleet of aircraft. The HUF design uses simple, dependable hydraulic jacks to move the wheels straight up and down while lifting or lowering the aircraft. For example, when ordering a set of ground handling wheels, such as P.N. BDW-MDH for the Explorer. The set will consist of 2 ea. P.N. HUF-00 and 1 set, P.N. W-CBR-00 carriers. If you have the need to move another helicopter, such as a Eurocopter AS-355 Twin Star, you can purchase another set of carriers and save the cost of buying an entirely new unit.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • HYDRAULIC OPERATION
  • 6000 lb. BOTTLE JACK
  • TIRES 5.30/4.50-6 6 PLY
  • WT. PER SIDE APPROX. 55 lbs.
  • COLOR ORANGE POWDER COATED
  • REMOVE PRIOR TO FLIGHT

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the price listed for this MULTI-CARRIER HYDRAULIC GROUND HANDLING WHEELS FOR HELICOPTERS for the set of wheels?

The price is for the base unit with wheels and the carrier / adapter for the aircraft. Other carriers / adapters are available for use on the same base unit.

Q: Is one set for both skids or do I need to order quantity 2 for 1 helicopter?

This is for both skid tubes. You will only need one set per helicopter.
