Bearing KP4

$27.50/Each
Part# KP4
MFR Model# KP4FS464

Overview

  • Single row, ball, heavy duty
  • PTFE seals and CRES sealcaps
  • Exposed surfaces except bore, caps, and seals are cadmium plated
  • Prelubricated for life

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

PN Bore
B
Outside Inner
D
Width Outer
Ring
W
Width  Inner
H
Shoulder Width  Bore
Ring
Inner
Ring
OD
Outer
Ring Corner Chamfer
Balls Pure Moment Moment Constant Wgt
KP3L 0.19 0.625 0.245 0.203 0.285 0.005 0.01 10/5/1932 51.8 12.08 0.01
KP3 0.19 0.7774 0.297 0.27 0.331 0.005 0.022 12/5/1932 93.7 10.13 0.03
KP4 0.25 0.9014 0.484 0.335 0.39 0.005 0.032 11/1/2004 130 8.84 0.04
KP5 0.3125 1.25 0.558 0.375 0.469 0.015 0.032 9/5/2016 335 6.77 0.09
KP6 0.375 1.4375 0.62 0.469 0.591 0.015 0.032 10/11/1932 580 5.44 0.15
KP8 0.5 1.6875 0.62 0.5 0.768 0.015 0.044 10/11/1932 1060 4.46 0.21

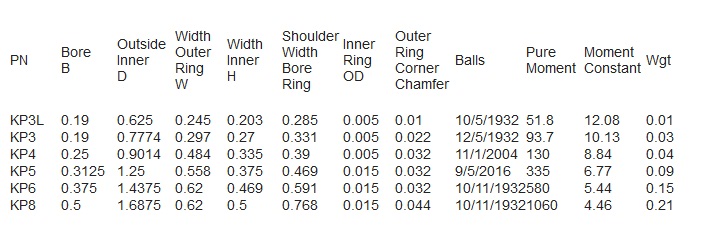

Reference Chart

Reviews

FRESH STOCK DATED 1/2024. ORDER COMPLETE

Tamiami I Verified Purchase

Bearing KP4

February 8, 2024

Waiting on the back order. The -8 and -6 fit and mounted perfectly. Thanks.

David A
February 16, 2017
