Part No. | Pilot & Drill Size |
---|---|
AT532-62 | .129" (#30) |

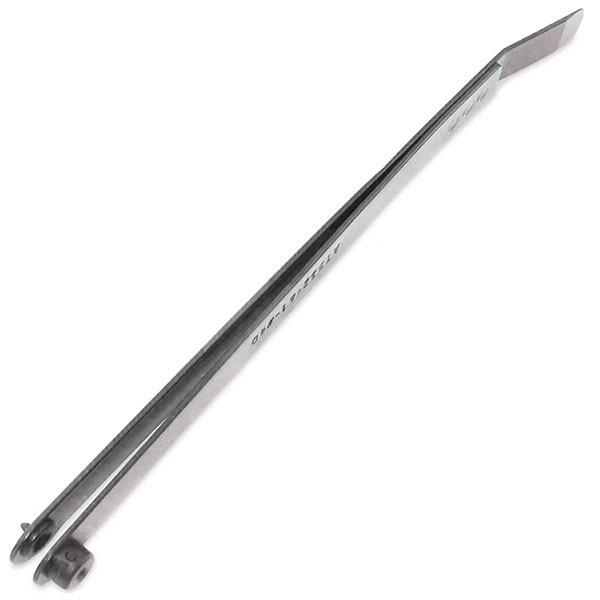

Provide an accurate means of drilling duplicate matching holes in over-lapping sheets. Hole to be duplicated is drilled though bushing when pilot is in place. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Exactly what I needed.
Hole Duplicators AT532-62
Theres really no substitute for a tool like this!
Hole Duplicators AT532-62
Hole Duplicators AT532-62
Works perfectly!!
Works great. When you are working alone, after you find the hole, clamp it.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
If you need to duplicate a hole that is on the bottom sheet to the top sheet, just slide the bottom sleeve with the male pilot between the sheet until the pilot is in the excisting hole. The top sleeve has a bushing with a hole in the middle, which you would drill your hole through. You then have two sheets of material with hole drilled in the same spot.
The length of this hole duplicator is approximately 8-5/8".
That is correct. The AT532-62 is used for 1/8", #30, holes.
