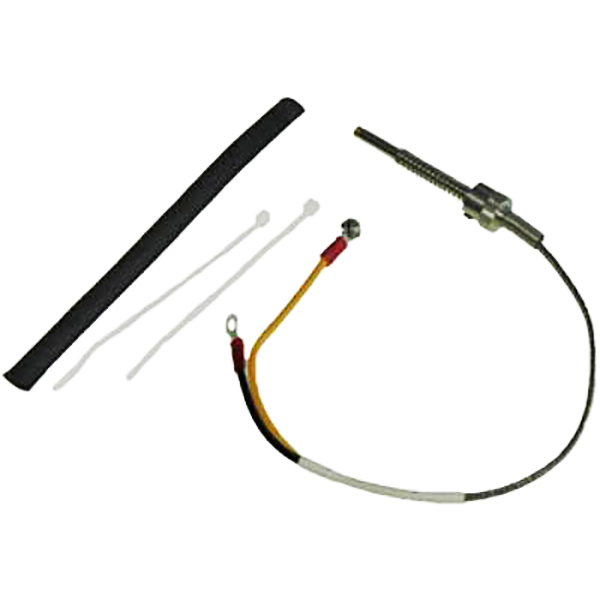

Thermo. Bayonet Type AN5541-1

$76.75/Each
Part# AN5541-1
MFR Model# CHT-511
DescriptionPart Number
THERMO. BAYONET TYPE AN5541-1AN5541-1

Overview

EGT Probe, Type K, Style 86255
P/N 11-01022

CHT Probe, Type J, Style AN5541-1
P/N AN5541-1

CHT Probe, Type K
P/N 11-01023

Cessna CHT Probe
P/N 06-00703

Note: These probes will only work with a grounded system.

Order Instruction

Before making any purchase on any thermocouple products, please provide the following information listed below to our Order Department:

1. The type of thermocouple - type J, type K, type T, etc.
2. The length of the thermocouple cable.
3. The thermocouple housing or mounting (bayonet, 1/8" NPT, etc.)
4. The length of the thermocouple probe
5. The electrical termination (bare wire, #8 ring connector, etc.)

For further assistance, please call us at 1-800-861-3192 or
email our by clicking here.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can I use P/N AN5541-1 with P/N 10-00374? Thank you!

Yes, the AN5541-1 will fit into the 10-00374 CHT adapter.

Q: Are these probes grounded or ungrounded?

All of these Universal replacement probes are grounded.

Q: Are these probes grounded or ungrounded?

All of these Universal replacement probes are grounded.

Q: Will EGT probe # 11-01022 work on Insight GEM?

Yes, the Insight Gem uses a type K grounded probe.

Q: What size is the clamp on probe # 11-01022?

The clamp included is 1.56"-2.5". A 3.5" clamp can be ordered separately.

Q: How long are the wires on 11-01023 CHT probe? If I need longer what kind of wire should I use?

The wires are about 1ft long. To extend the leads, you will need type k thermocouple wire.

Q: Are the Universal type-K CHT probes compatible with JPI EDM-700?

JPI recommends using their probes on their engine monitors.
