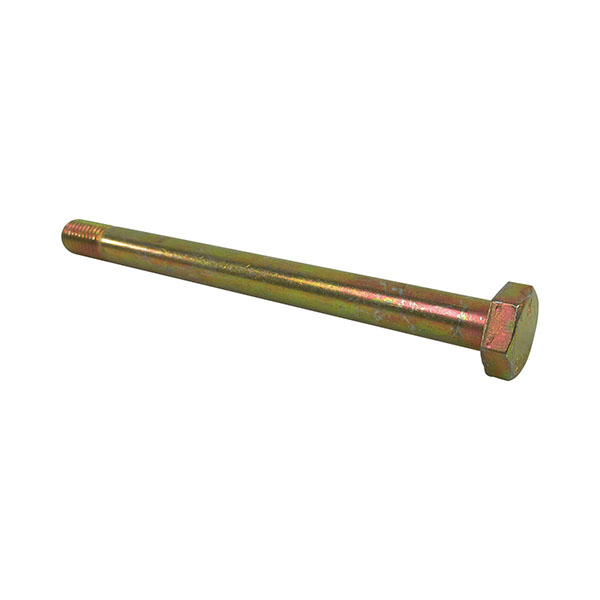

Bolt Undrilled AN5-35A
FREE Shipping
| Dash No. | Nominal Length | Grip Length | AN5C Stainless Drilled | AN5C Stainless Undrilled |
|---|---|---|---|---|
| -35 | 3-23/32 | 3-3/16 | -- | -- |
Overview
|
Hex head aircraft bolts are made of high-strength type 4037 or 8740 alloy steel (type 8740 is most commonly used). The bolts are centerless ground and threaded after heat treatment. Minimum tensile strength 125,000 PSI. Cadmium plated per specification QQ-P-416A, Type II, Class 3. Available with shank drilled for cotter pin or undrilled for stop nut application, and with or without drilled head for safety wire. Specify bolts to have undrilled shank by adding letter "A" after the dash number. For bolts with drilled head add letter "H" after the AN number. See illustrated examples. "C" represents Type 431 Stainless Steel (contains iron which is magnetic). The length of AN aircraft bolts is measured from under the head to the end of the shank. The "grip" is the unthreaded portion of the shank. See table for conversion of length and/or grip to proper AN callout.
15% discount on qty of 50-99 20% discount on qty of 100+ Note: Drilled bolts listed above are drilled shank only. To order drilled head only or both drilled head and shank bolts, please use our AN Bolt Selector by clicking the link below. Click here for the AN Bolt Selector |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Reference Chart
Reference Chart
Reviews
Exactly as advertised. Very satisfied.
Verified Purchase
Bolt Undrilled AN5-35A (Pack Of 5)
Verified Purchase
Bolt Undrilled AN5-35A (Pack Of 5)
Correct bolt from parts list to fit Piper Cherokee/Arrow wheels.
Verified Purchase
Bolt Undrilled AN5-35A
just what I needed. Perfect
Verified Purchase
Bolt Undrilled AN5-35A
Could not find product and Aircraft Spruce came to the rescue and the pricing was excellent.
perfectly good
We cant get these anywhere else, so thanks for stocking them.
Superb.
As always, on-time and right.
Received as ordered.
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The dash number designates the size and completes the part number. Example part numbers would be AN5-4, AN5-5, AN5-6, etc.
The discount schedule for large quantities are: 50-100 = 15% / 100+ = 20%. Package quantities are usually 25 but we can sort them however you prefer as long as you mention it in special instructions at checkout.
