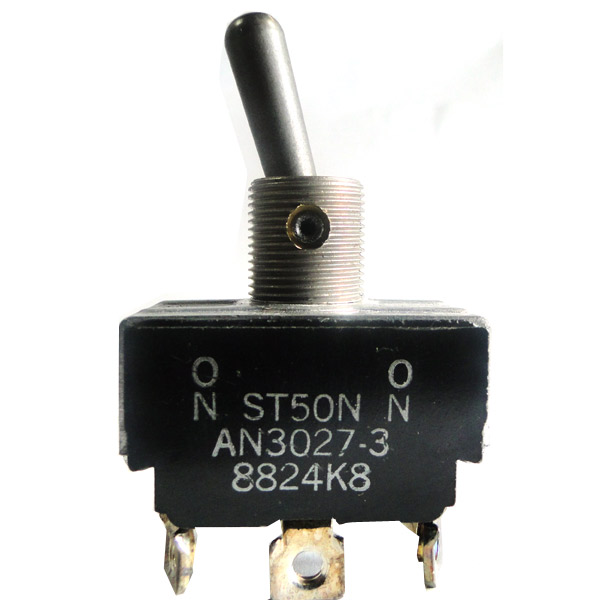

Toggle Switch AN3027-3

27 Reviews 25 Answered Questions
$38.75/Each
Quantity
Add to Wishlist View More In This Series →
Part# AN3027-3
MFR Model# 8824K14
AN No.MS No.Mfgrs. PNContactToggle Circuit
Code
AN3027-3MS35059-23JBT - MS No.DPDT3

Overview

Toggle switches are available with two or three operating positions, 1 hole mounting and a variety of circuitry & electrical ratings. Contacts are made of solid silver. Wide usage is found in aircraft, mobile, marine, electronic and industrial applications. Available in full "AN" standard size & Ultra Miniature 1/2" size. Leading manufacturers of toggle switches are Micro Switch, Alcoswitch, Cutler Hammer, & JBT, now Cutler Hammer. Orders will be filled with switches of the manufacturer whose product is available in local stock.

Note: * Momentary Contact

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Toggle Circuit Table

Circuitry with Toggle at

TOGGLE CIRCUIT CODE (*)
UP CENTER DOWN
1 On Off On
2 On None Off
3 On None On
4 On Off On*
5 On* Off On*
6 Off None On*
7 On Off None
8 On Off None
9 None Off On*
10 On Off* None
11 On None On*
12 On* On None
13 On On None

* Momentary contact
