Home / Rotax Engines & Parts / Parts / Two Stroke Parts / 582UL /ROTAX 240-036 HEX. SCREW M6X25 DIN 933
Main Image

ROTAX 240-036 HEX. SCREW M6X25 DIN 933

0 Reviews 2 Answered Questions
$0.53/Each
Quantity
Add to Wishlist View More In This Series →
Part# 15-00113
MFR Model# 240-036

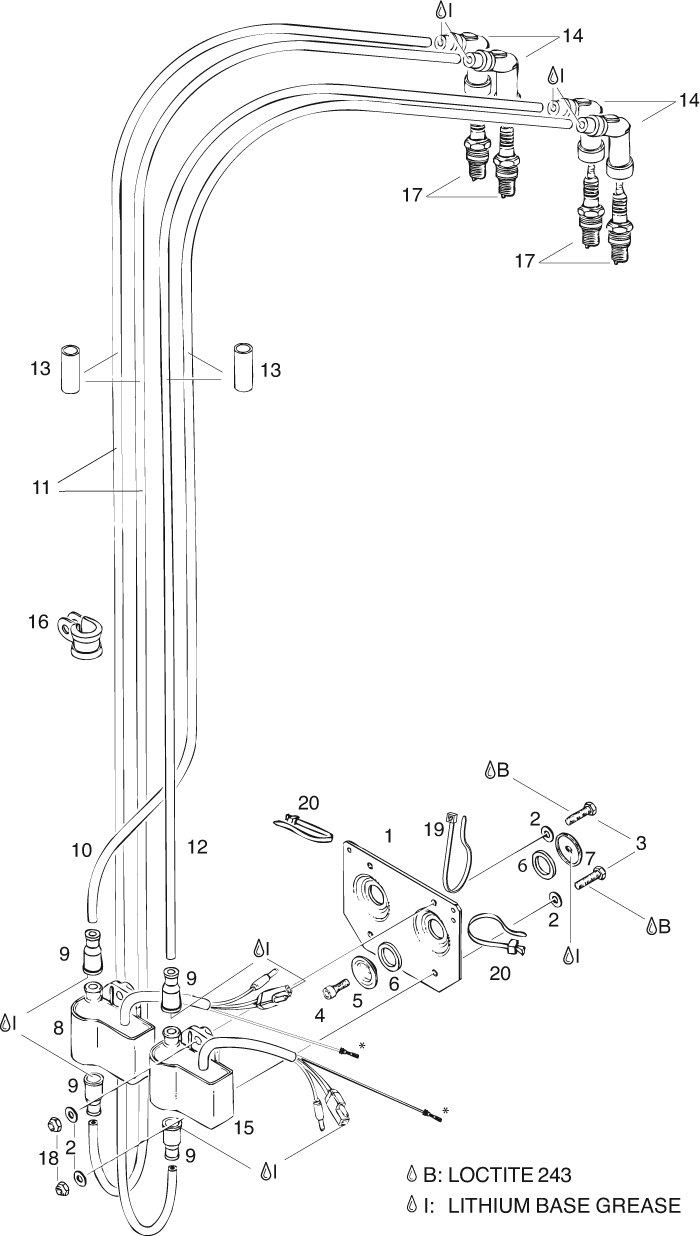

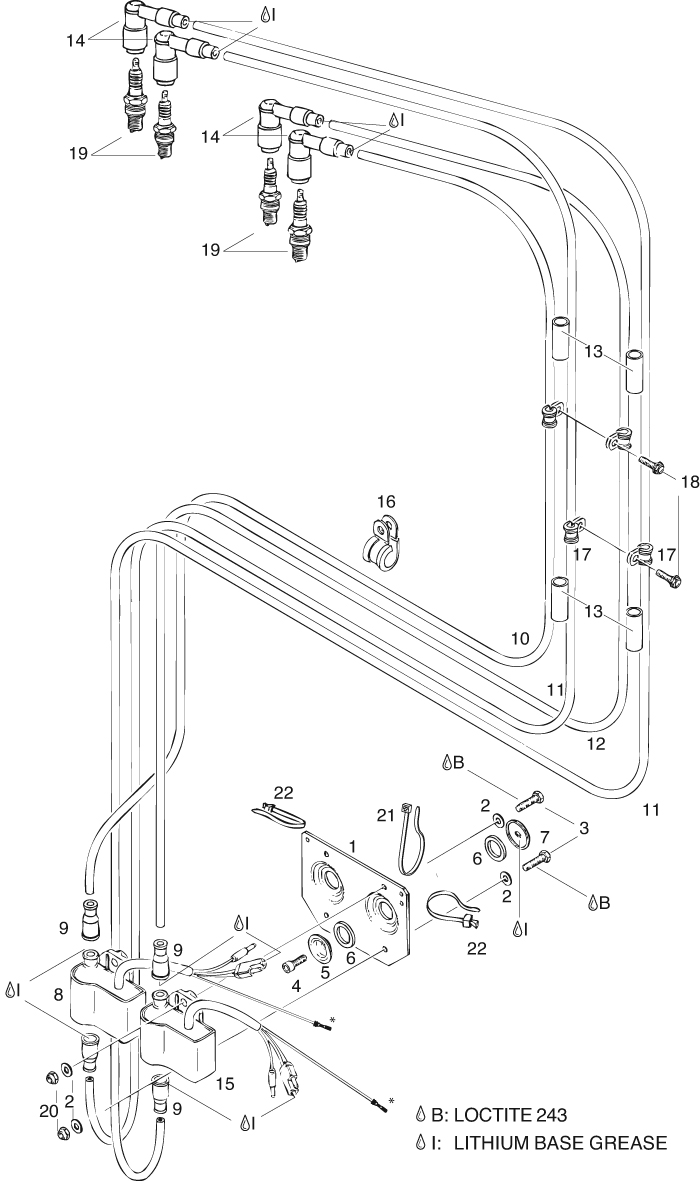

No.Part NumberDescriptionQty Req Mod. 99Qty Req Mod. 17Part Number
11240-036HEX. SCREW M6X25 DIN 933415-00113

Overview

- Items not illustrated
  • a   For ignition circuit 1
  • b   For ignition circuit 2
  • c   To fix oil tube resp. cable harness
  • d   In a roll
  • e   See Service Instruction SI-2ST-010


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Notes









965-153 SOLD IN METER LENGTHS. FOR CORRECT LENGTHS NEEDED, SEE DESCRIPTION OF INDIVIDUAL PARTS BELOW.
No.
Status
Part No.
 Descriptions
QTY mod.90
QTY mod.99
PRICE
5
965-153
 IGNITION CABLE 360 MM
2ad
2ad
*
7
  * IGNITION CABLE 180 MM
1bd
1bd
*
8
* IGNITION CABLE 440 MM
1bd
1bd
*

20
* OIL HOSE 155 MM
1d
$51.29
21
* OIL HOSE 360 MM
1d
$51.29
956-140 SOLD IN METER LENGTHS. FOR CORRECT LENGTHS NEEDED, SEE DESCRIPTION OF INDIVIDUAL PARTS BELOW.
20
956-140
 * OIL HOSE 155 MM
1d
*
21
956-140
 * OIL HOSE 360 MM
1d
*

Reference Chart

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: The part # 960-550 stand for 4 items, the price is for the four caps or just one?

These are priced and sold per cap.

Q: What is the difference between 966-467 Electronic box and 966-462 Electronic box?

966-462 is for the pto side and 966-467 is for the mag side. Only differance is the length of the spark plug wires.
