Economy 30 Strp Dp Bush Typ 6 1/4

15 Reviews 4 Answered Questions

$10.65/Each

Add to Wishlist View More In This Series →

Part# 12-01496

Description	Size	Part Number
Strap Duplicator - Bushing Type	#30, 6-1/4"	12-01496

Overview

For drilling an accurate hole in overlapping sheets. The Bushing type duplicator is used by sliding the end with the pin between the sheets and locating the hole to be duplicated from inside.

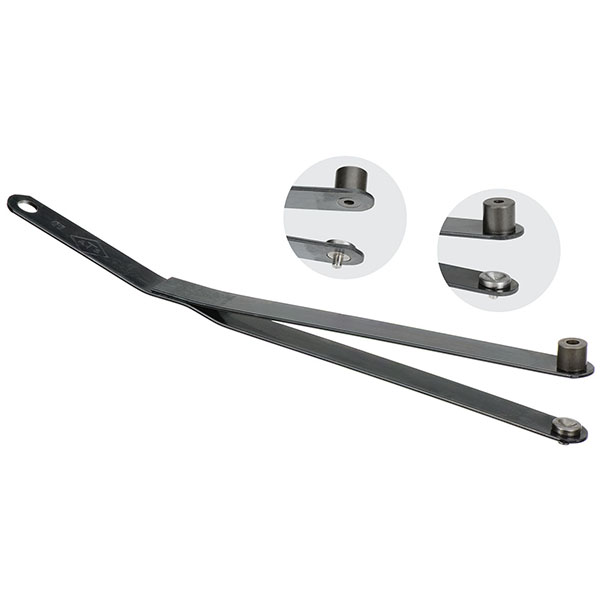

P/N 12-01498 is pictured.


	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Frequently Purchased With
Customers Also Viewed

Reviews

Submit a Review

I like the selection of tools you have and easy to find and decide what items you need & want.

Ed S

Verified Purchase

Economy 30 Strp Dp Bush Typ 6 1/4

June 14, 2023

Looks good but I should have ordered a longer one.

Donald K

Verified Purchase

Economy 30 Strp Dp Bush Typ 6 1/4

February 22, 2023

Useful

Peter W

Verified Purchase

Economy 30 Strp Dp Bush Typ 6 1/4

December 23, 2022

Havent had a chance to use it yet, looks sturdy, and appears easy to use. Should serve the purpose.

Nicholas M

Verified Purchase

Economy 30 Strp Dp Bush Typ 6 1/4

December 13, 2022

Ken M

Verified Purchase

Economy 30 Strp Dp Bush Typ 6 1/4

October 12, 2022

Excellent budget tool. Very well made, precise and has a great finish. Id recommend this to anyone.

Brian H

June 20, 2020

Works as it should. A very handy item to have in the tool box.

Keith H

May 29, 2020

Works great. Easy to use and accurate.

Herbert C

April 2, 2020

worked great. no issues with the first use

Brian M

November 7, 2019

Great for what it is intended!

Daris H

August 2, 2019

Great when you need it!

Daris H

August 2, 2019

I ordered both types of duplicator straps and they were delivered 4 days later using standard postal service. Excellent service and first rate items.

Ian

April 2, 2017

Worked as advertised, very pleased

James K

March 12, 2017

Worked great, just what I wanted

Flying D

March 9, 2017

Worked well for drilling holes through new Piper Dorsal Fin. However, for holes closer to a raised area, I had to grind the lip off. Otherwise it worked well.

Jan

June 2, 2017

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: #? For a 5/32 hole? What size does the number represent?

The # represents the size drill bit used for this product.

Q: Is the 13-1/4 dimension the length of the duplicator on part # 12-01502?

Yes, that dimension is the length.

Q: For 1/8 inch hole? which size is recommend?

You would want to use one of them designed for the #30 bit. #30 measures .1285 which is just over 1/8".

Q: please provide us with the part number usable for mentioned diameters for rivet diameter (hole) 2,4 mm = 3/32 (inch) 2) 2) for rivet diameter (hole) 3,2 mm = 1/8 (inch) 3) 3) for rivet diameter (hole) 4,0 mm = 5/32 (inch)

They are listed by the drill number you would use for the rivet. 3/32 would be a #40, 1/8 would be a #30, and 5/32 would be #21.
