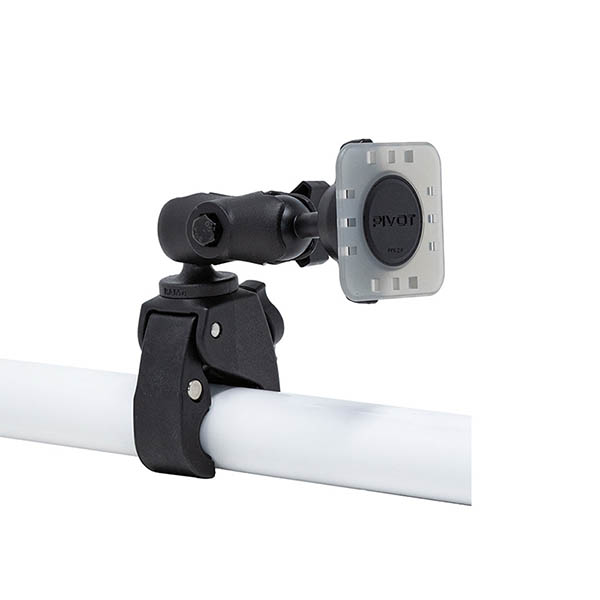

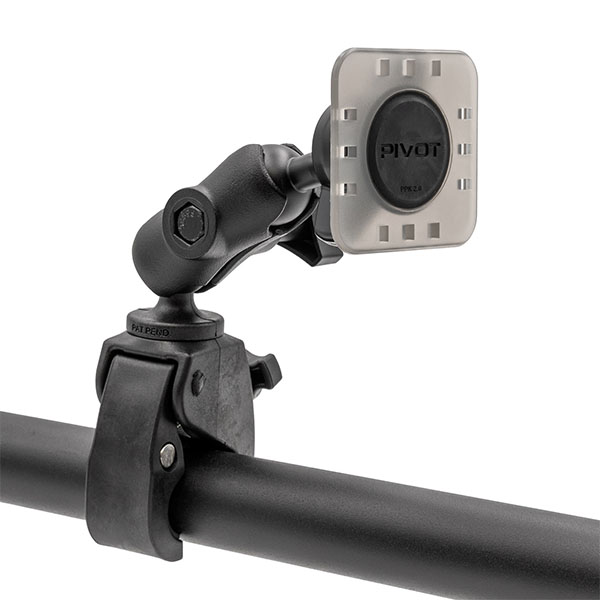

Flyboys Pivot Claw Mount - Small - 0.625 Inch To 1.5. Inch Diameter
$59.95/Each
Part# 11-19558
MFR Model# PC-SCLS
MFR Model# PC-SCLS
FREE Shipping
Overview
|
Caution: Always ensure freedom of flight control movement before attempting to fly with any mount attached to the aircraft yoke
With incredible clamping power from the Tough-Claw Clamp, the PIVOT Claw Mount will not lose its grip, ensuring that your device remains exactly where you mounted it regardless of flight conditions. The small clamp works on round, square, and odd-shaped rails and bars ranging from 0.625” to 1.5” in diameter, and flat surfaces ranging from 0” to 1.14” in thickness. It is also available with an extended arm for applications that require a little more reach. The medium clamp works on round, square, and odd-shaped rails and bars ranging from 1” to 1.875” in diameter, and flat surfaces ranging from 0” to 1.6” in thickness. High strength composite and stainless-steel hardware ensures durability and reliability in the most demanding environments. Ideal for applications where space is at a premium. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- Tough-Claw Clamp: The small claw is designed to clamp to round, square, and odd-shaped rails and bars ranging from 0.625” to 1.5” in diameter, and flat surfaces ranging from 0” to 1.14” in thickness. The medium claw works on round, square, and odd-shaped rails and bars ranging from 1” to 1.875” in diameter, and flat surfaces ranging from 0” to 1.6” in thickness.
- Durable: High strength composite and stainless-steel hardware for durability and reliability in the most demanding environments. Ideal for applications where space is at a premium.
- Complete Mounting Solution: Includes all hardware necessary to mount a PIVOT case in virtually any aircraft, vehicle, or other location where the clamp can be attached.
- PIVOT Click-Connect: Quickly and securely attaches to any PIVOT case.
Specifications
- Dimensions:
- Small Claw Mount: 7.75 in (19.7 cm),
- Small Claw Mount - Extended Arm: 9.13 in (23.2 cm)
- Medium Claw Mount - 10.00 in (25.4 cm)
- Weight:
- Small Claw Mount: 9.91 oz (0.281 kg)
- Small Claw Mount - Extended Arm: 11.46 oz (0.325 kg)
- Medium Claw Mount - 15.97 oz (0.453 kg)
- Weight Capacity: 2.0 lbs
- Clamp Range
- Round/cylindrical surfaces:
- Small Claw: 0.625" - 1.5" outer diameter, Flat Surfaces: 0.00" - 1.14" in thickness
- Medium Claw: 1” to 1.875” in outer diameter, Flat Surfaces: 0” - 1.6” in thickness
- Materials
- Tough-Claw: High-strength Composite Polycarbonate
- Double-Socket Arm: Marine-grade Aluminum
- Double-Ball Adapter: Marine-grade Aluminum
- PIVOT PPK Mounting Plate: High-strength Polycarbonate
Compatibility
- PIVOT Cases: All cases, past, present, and future.
- Aircraft Compatibility:
Small Claw Medium Claw Cessna Beechcraft Piper* Piper* Mooney
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Q: Are the tough claw clamp and the double socket arm a ram production, because it looks like a there is a ram engraving on the image?
Yes those are Ram products.
