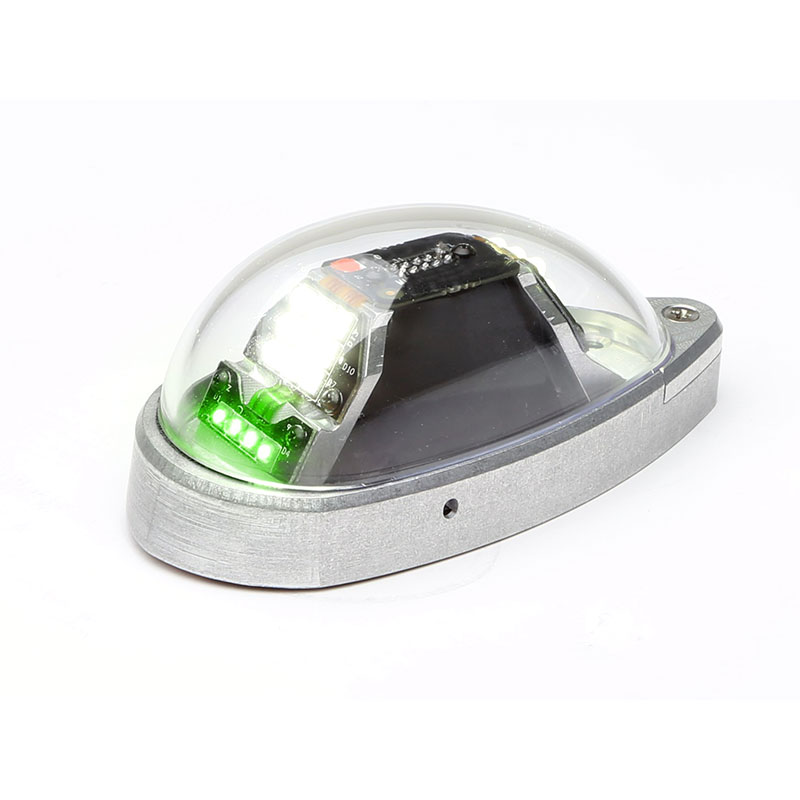

Whelen Orion 6502G 28V Wingtip Pta Green
Add to cart for current price
MFR Model# 01-0790725-11
FREE Shipping
| Model Num. | Description | Whelen # | Part Number |
|---|---|---|---|
| OR6502G | Green Forward Position, Anti-Collision Light Wingtip Assembly, 28 VDC | 01-0790725-11 | 11-18767 |
Overview
| The Orion 650 series products incorporate RED or GREEN Forward Position Lights as well as the WHITE flashing Anti-Collision Light function. State of the art LED circuitry is built in to eliminate the need for separate flasher boxes for operation. The footprint, and mounting, are identical to legacy Whelen products for ease of installation and retrofit. Fully FAA/TSO & STC approved. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Specifications
- Drawing 90725
- Weight 0.26 lbs
- Current Draw for 14V Models: 0.30 amps / 0.70 Position avg ACL
- Current Draw for 28V Models: 0.15 Amps / 0.35 Position avg ACL
- Lenses Clear Hardcoated Polycarbonate
Drawing
Videos
Reviews
Verified Purchase
Whelen Orion 6502G 28V Wingtip Pta Green
Looks good, easy install, able to use existing strobe wiring and remove the strobe power supply. Brighter too.
Verified Purchase
Whelen Orion 6502G 28V Wingtip Pta Green
Direct replacement for my older wingtip lights on my 65 Comanche. These enabled me to remove the strobe power supplies in the wingtip shaving off 2.5 lbs of weight. They look sharp and are really bright. The price is high but that’s the case with aviation and quality products. This was a great project to give my plane a facelift and reduce electrical load. Install time if just removing the old one and the old strobe power supply was about an hour a side. I ran a sync wire from wing tip to wing tip that added another couple hours but it was worth it.
Great pruduct, highly reccomend. Fits same footprint and nutplate pattern of my old Whelen strobe/nav light. Got rid of old high-voltage stobe power supply, saving 1.1lbs per wing. Only slight issue was the new strobe baseplate is flat, whereas the old strobe had a slight cavity so it would sit against the slight curvature if my wingtip. Solved by fabricating gasket from 1/8 foam material, Could probably also have just used proseal under baseplate too.
Verified Purchase
Whelen Orion 6502G 28V Wingtip Pta Green
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Some Cessnas require a wingtip adapter. You will need to verify with your A&P to determine if your aircraft requires one. Example adapter part number is 11-18768.
Part number 11-18776 would work. It is 20awg 4 conductor shielded wire.
The Orion 650E outputs 400 effective candela.
650E is only for embedded wingtip designs meaning that they depend on the aircraft's exterior lens to keep them protected.
The Orion 650 outputs 150 effective candela.
