Telex Airman 8+ Double Side ANR Headset Airbus XlR5 600Ohm

0 Reviews 1 Answered Question
$570.00/Each
Quantity
Add to Wishlist View More In This Series →
Part# 11-18323
MFR Model# AIRMAN8P-0211

Overview

Airman 8+ ANR Ultra Lightweight Headset 600 OHM refined design elements and a range of new features that make AIRMAN 8+ the best-performing Telex Airman Active Noise Reduction (ANR) headset to date.

The Telex Airman 8+ is a lightweight noise-reducing headset designed specifically for optimizing pilot communications in commercial and business turbine aircraft. Building on the tradition of the Airman 8+ has improved ANR capability and comfort. The headset is only one of three FAA TSO C139a approved ANR headsets to utilize Telex’s proprietary battery-free system. Larger pliable ear cushions and headband pad combined with dual axis ear cup pivots to provide long flight wearing comfort.

The AIRMAN 8+ offers a range of innovative new features for increased comfort, stability and ease-of-use:
  • ANR reduces fatigue and improves intelligibility
  • Larger comfortable leatherette ear cushions and sanitary replaceable covers are included
  • Two different sized interchangeable soft headband pads and ultra-lightweight design for enhanced comfort, even on long flights
  • Strong stainless steel headband and dual-axis pivot points for increased durability and long headset life
  • New yoke design provides dual-axis adjustments and rotation stabilization

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

Sound Quality
  • The Airman 8 features a high-quality amplified electret microphone for clear voice transmission. Improved ANR and microphone noise cancellation ensures superior in-flight communication.
Active Noise Reduction
  • The Airman 8 headset features enhanced ANR (Active Noise Reduction) with even more noise reduction, helping to improve intelligibility and reduce fatigue. The position of the ANR switch has also moved to the forward-facing ear cup side, making it easier to reach the switch without having to remove the headset. A unique feature of the Airman 8 is that it is powered from its microphone system, eliminating the need for batteries or special connectors.
Durability
  • A strong stainless steel headband with metal pivots improves durability for long headset life. The new microphone boom design provides stronger rotation stops, utilizing the full diameter of the ear cup. Furthermore, a pre-coiled overhead cord has been added to extend the useful life of the headset. The main headset cord is also more robust and features an improved design of the band relief on the ear cup entrance.
Comfort and Fit
  • The soft headband pad and lightweight design provides comfort, even on long flights. An added yoke provides enhanced comfort by allowing ear cup movement in all directions. Furthermore the Airman 8 comes with replaceable ear cup covers and leatherette ear cushions.
Safety Improvements
  • An acoustic limiter protects users against sudden increases in sound levels
FAA TSO Approval
  • The Airman 8 headset is fully FAA TSO C-139a compliant.
ARINC standards
  • The Airman 8 is fully compliant to ARINC (Aeronautical Radio, Incorporated) requirements.
Versions Available
  • The Airman 8 is available in different dual-sided configurations.

Specifications

  • Impedance: 600 Ω +/-20% @ 1 kHz / 92 ±5 (normal) / 98 ±5 (high) dB SPL/mW @ 1 kHz
  • Wearing weight: ~4.4 oz (~125 g)
  • Dual GA Variant: Microphone PJ-068 (equivalent) / Headphone PJ-055 (equivalent)
  • XLR5 Variant: Microphone and headphone 5-pin male XLR
  • Cord length: 6 ft. +/-4 in. (1.8 m +/- 10 cm)
  • Noise Reduction: Active, up to 15 dB
  • Power Requirements: via boom microphone
  • FAA TSO Approvals: C-139a approved
  • Weight: ~4.2 oz (119 g)

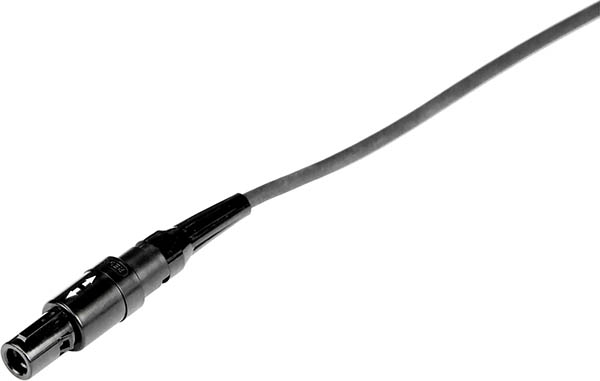

  • Connector Type: PJ-068 & PJ-055 equivalent or XLR-5-12C
  • Deviation: asdf
  • Warranty: 3 years

Documents

Benefits

  • Excellent ANR performance and microphone noise cancellation ensure superior in-flight communication
  • Innovative technology eliminates the need for batteries
  • Fully FAA TSO C-139a approved
  • Meets RTCA DO-160G and DO-214A standards
  • Acoustic limiter protects against sudden increases in sound level
  • Clear voice transmission with high-quality amplified electret microphone
  • Three-year warranty

Videos

https://www.youtube.com/embed/cS8QQS0WM4s

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Would these be suitable for noise levels found in a typical piston single?

They could be used in a GA environment but they are most typically used in commercial or airline applications.
