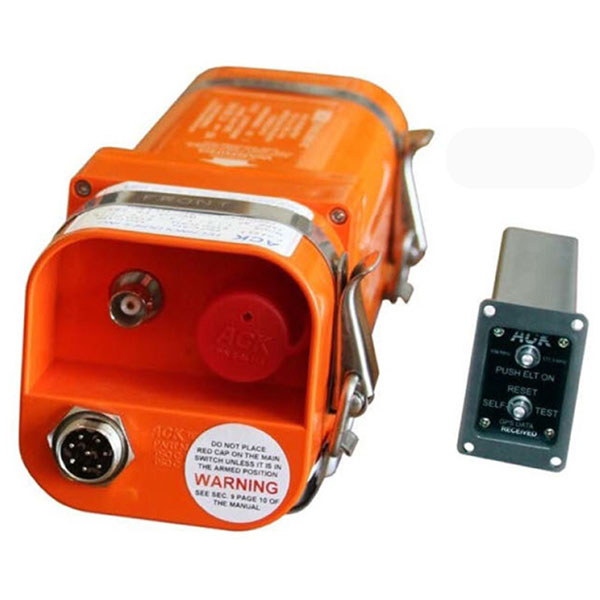

ACK E-04 Complete ELT Kit With 350 Knot Rod Antenna International
MFR Model# E-04.1 INT
FREE Shipping
Overview
|
GPS capable ELT accepts Garmin aviation, Bendix/King aviation, NMEA 0183 and Arinc 429 data. Retains GPS coordinates after power is removed. Remote fits Artex and Kannad panel cut-outs.
ELT certified to the new TSO-C126B standard battery certified to TSO-C142A lithium batteries UN/DOT 8.3 lithium batteries.
Warranty: All warranty issues must be handled directly with the manufacturer. These are non-returnable and non-refundable once installed. If any attempts have been made to install this unit it becomes a warranty issue and can only be resolved through the manufacturer directly. There is a $250 Recertification fee in addition to the 15% restock fee on all ACK products that have been opened. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Specifications
Approvals:- FAA / Transport Canada
- TSO -C126b TSO-C91a TSO-C142a
- EASA
- ETSO 2C126 ETSO 2C91a TSO-C142a
- Industry Canada
- 1863A-E04AF
- Brazil ANAC/ANTEL
- TSO-C126 TSO-C142a
Frequency: 121.5 MHz & 406.037 MHz
Modulation:
- 406 MHz +/-2 kHz Bi-Phase L (16KOG1D)
- 121.5 MHz +- 6 kHz AM (3K20A3N)
- Swept Downward 1400 – 400 Hz
- Repetition Rate 3 Hz
- Modulation Factor ≥ 90%
- Duty Cycle ≥ 45%
- 121.5 MHz 20.7 dBm 50 Hours@ -20C
- 406.037 MHz 37.3 dBm 24.5 Hours @ -20C
- 121.5 MHz +22 dBm 160 mW
- 406.037 MHz +39.79 dBm 13.7 W
- 121.5 MHz +23 dBm 200 mW
- 406.037 MHz +39.79 dBm 13.7 W
- -20C TO +55C
- Storage Temperature: -55C TO +85C
Dimensions:
- 7.750” x 2.850” x 2.850”
- 192 mm x 72 mm x 72 mm
- ELT and battery pack 1.6 lbs .73kg
- ELT tray and straps .2 lbs .09kg
- Remote Control (RCPI) 12.5oz 31g
- Audio Alert Indicator 1.5 oz 43g
Documents
- Frequently Asked Questions (PDF)
- Installation Manual (PDF)
- Antenna Dimensional Drawing (PDF)
In The Box
- 1 - E-04C 121.5/406 MHz ELT
- 1 - E-04.5.1 Remote with vertical placard
- 1 - E-04.5.1.0H Remote horizontal placard
- 1 - E-04.10.4 Coax cable 60”
- 1 - E-04.10.1.11 Warning horn
- 1 - E-04.4 Mounting Tray
- 1 - E-04.4.1 Retaining strap front
- 1 - E-04.4.2 Retaining strap battery case
- 1 - E-04.10.1.13K 2 Pin plug kit
- 1 - E-04.10.1.4K 8 Pin circular plug kit
- 1 - E-04.10.1.10K 15 Pin plug kit
- 1 - E-04.11.1 Switch cover
- 1 - E-04CM Installation/Operation/Manual
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes. We can program it for Argentina. You will just need to order it and provide the aircraft and country information to program it. The package will include everything needed for the install.
Yes, this unit complies with these TSOs. All approvals and information can be found in the installation manual under the Documents tab.
Yes, the battery is included.
The main difference is the type of antenna that the aircraft requires - Whip, Rod, or Blade. Part # 11-13591 is programmed for a plane that would be located outside of the USA.
Yes, the antenna is included and the ELT will work in and outside USA. During the ordering process you will need to provide the Owner/Operator, aircraft, and country information.
Part # 11-13637 is the ACK remote switch cable that will extend the remote switch cable on the ELT. Length is 5ft.
