- Photo may represent series and not specific product
- SHARE

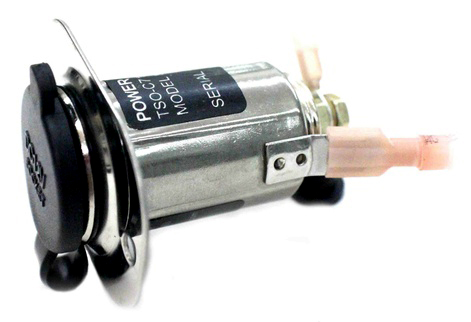

Lonestar TSOD Cig Lite Recept 13.8V
MFR Model# LS03-05025-13.8
FREE Shipping
Overview
|
Perfect for portable GPS systems, Cell Phone Chargers, Laptop Power Supplies, or anything you would plug into your car during a road trip. TSO'd Approved. 12V AIRCRAFT: If your aircraft runs on 12V you will not need any extra equipment to operate 12V equipment, and it comes with a rubber cap marked with DC12V. 24V AIRCRAFT: Please note, you will need a 28V to 12V converter to power most 12 volt consumer electronic devices. Output Current: 8 Continous - 10 Peak Amps < |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Documents
Reviews
Havent installed yet because it needs a larger hole from the original. Would be nice if it included some wiring for installation.
Verified Purchase
Lonestar TSOD Cig Lite Recept 13.8V
High quality with all the connectors needed.
Verified Purchase
Lonestar TSOD Cig Lite Recept 13.8V
AOK: works fine
Verified Purchase
Lonestar TSOD Cig Lite Recept 13.8V
As represented
Verified Purchase
Lonestar TSOD Cig Lite Recept 13.8V
Excellent, high quality, nothing like auto parts.
Verified Purchase
Lonestar TSOD Cig Lite Recept 13.8V
Very well made.
Verified Purchase
Lonestar TSOD Cig Lite Recept 13.8V
Looks great, easy install, looks good and just what we needed
Verified Purchase
Lonestar TSOD Cig Lite Recept 13.8V
Fits perfectly in the cigar lighter hole on the panel of my 1947 Cessna 140 and works well.
Too d__n expensive but you have us between a rock and hard place.
Product delivered was high quality, and delivered on time.
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, this receptacle is FAA Approved for use in certified aircraft.
We have added the technical sheet to the 'Documents' tab of this web page. Please download and review them there.
Per the manuf. Certificate of Conformance, the parts meet FAA-PMA-TSO FACTORY NUMBER PQ0771SW-PT0771SW
This is a receptacle and does not have USB ports. It is a cigarette port. The USB charger will need to be purchased separately.
16 gauge wire.
The operating voltage is between 10VDC - 32VDC, output is 13.8v.
It is similar to most cigarette receptacles but this one has FAA approvals.
No, this is a certified unit and the PMA approval can be downloaded for further information PQ0771SW/PT0771SW.
