- Photo may represent series and not specific product
- SHARE

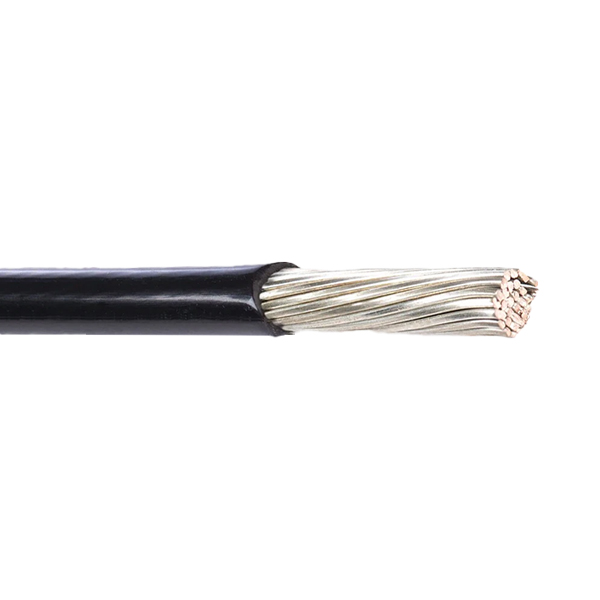

Unshielded 14GA Black Wire M22759/16-14-0
MFR Model# J1178-0
FREE Shipping
- JUMP TO
- Overview
- Documents
- Reviews
- Q&A
- View in Catalog
| Mil-Spec | Wire Gauge | Color | Part Number | Price 1000 ft |
|---|---|---|---|---|
| M22759/16-14-0 | 14 | Black | 11-07788 | $810.00 |
Overview
|
For many years the standard hookup wire in light aircraft has been MIL-W-5086A, which calls for use of tin-coated copper conductor rated at 600 volts and temperatures of 105°C. This basic wire is then coated with various insulating coatings including PVC. There has been much discussion during the past few years about the use of wire with PVC in aircraft. The Air Force does not permit such wire to be used in military aircraft due to the toxic fumes generated in the event of a fire which can disable the crew. Although there is no formal restriction on the use of MIL-W-5086A wire as of early 1991, as our supplies of MIL-W-5086A wire are depleted we will now be supplying MIL-W-22759/16 wire which complies with current military and anticipated future FAA requirements. This top quality aircraft unshielded wire is manufactured to Specification MIL-W-22759/16. It features standard tin-plated copper conductor and is insulated with extruded Tefzel (ethylene/tetrafluorbethylene) which has a maximum temperature rating of 150°C. This wire is rated for 600 volts. Colors: white, Black, Blue, Green, Red, Yellow, and Striped 40% Discount on 1000+ ft |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Documents
Reviews
Good Quality Wire
Verified Purchase
Unshielded 14GA Black Wire M22759/16-14-0
As described
Verified Purchase
Unshielded 14GA Black Wire M22759/16-14-0
Nice to have colored wire instead of white everything!
Works great
Works great
Nice
Product was in excellent condition, and as described.
Shipped promptly, arrived in good condition.
Worked perfectly.....thanks!!!
Just what I needed.
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
We do not supply cloth covered wiring, nor do we recommend using cloth covered wiring in your aircraft.
No, there is no minimum length per selection. However, there is volume discounts when you order in 100 ft and 1000 ft increments.
Yes, this is an acceptable wire for your PTT switch.
Yes. We have spool quantities at 500 and 1000ft.
This will work for some items you listed. Please check to see what wire is needed based on the product so the size is correct. We always recommend conferring with an A&P mechanic if in doubt on correct wire to use.
