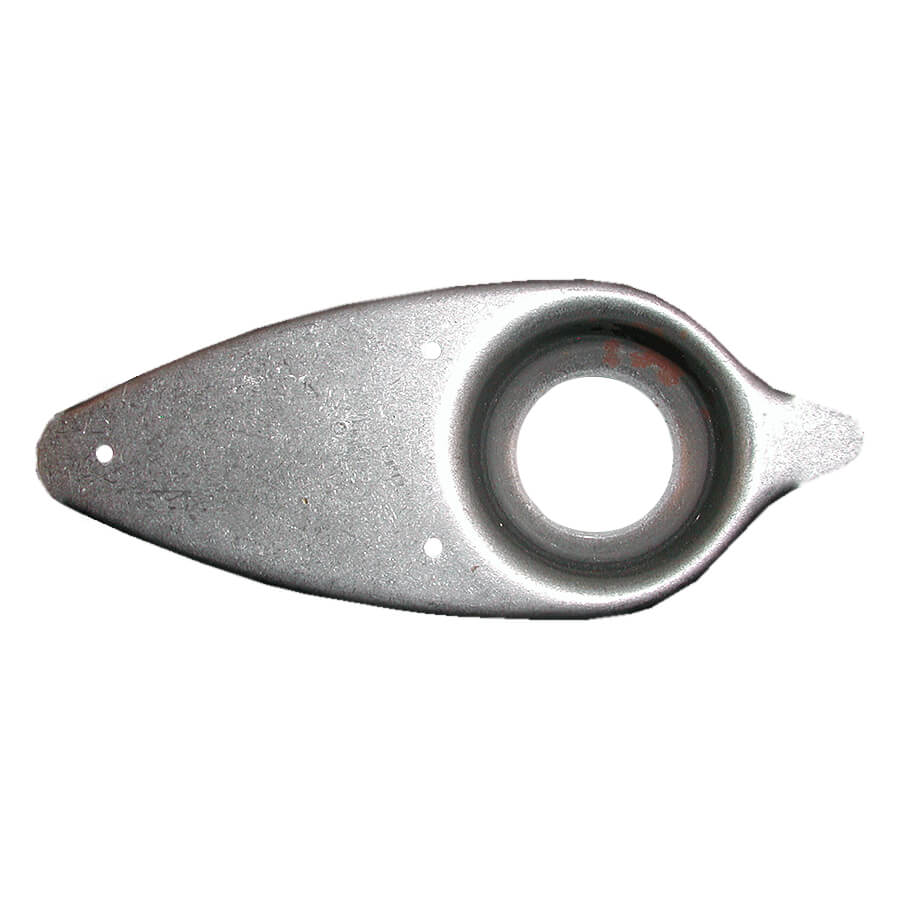

Grimes Steel Form Nav Lt Plate

$43.65/Each
Part# 11-06900
MFR Model# 0400-112
DescriptionPart No.

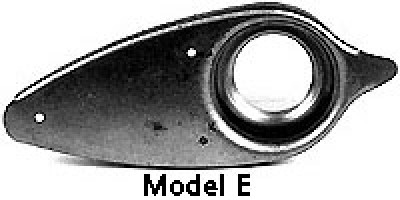

MODEL E WING LIGHT PLATE11-06900

Overview

Note: Units are steel without any coatings and they need to be welded. Surface rust may be present as a result.

Wing tip light plate is welded or screwed to wing tip bows to attach teardrop type position lights. Tail light plate is welded to rudder to attach Model S tail light.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Part was about 3-4 weeks to arrive … Not Spruce but biden’s fault. Part didn’t fit and Spruce was efficient in processing the return

Ronald G Verified Purchase

Grimes Steel Form Nav Lt Plate

May 6, 2022

High quality just like an original.

Daniel M
October 30, 2017

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What dimensions are the model E plates?

4.375" Length | 1.795" Widest Point | 1.3" Inner Diameter | 0.88" Hole

Q: What are the dimensions of the model S plates?

The bracket is 2.750" long and about .625" deep, about 1.50" wide. It is designed for J3's and Taylorcrafts.

Q: What is the inside dimension of the model S? Will it fit modern led tail lights?

It's about 7/8", the more modern lights are bigger and the hole has to be enlarged.
