Silicon Nipple MS25171-2S Wht

$1.64/Piece
Part# 11-03914
MFR Model# 06400-5

Overview

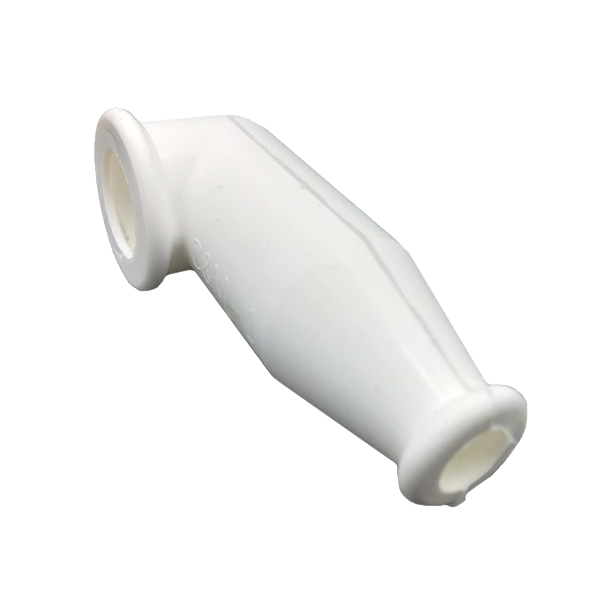

Right angle nipples made of silicone rubber
MIL-R-5847, Class II, Grade 50. A-A-59178B

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

A-A-59178B A B C D E F G H
Dash No. Max. ±.125 ±.005 Dia. Dia. Dia. Dia. Dia.
-1 1.38" 0.56" 0.06" 0.4" 0.63" 0.16" 0.41" 0.76"
-2 2.5" 1" 0.06" 0.56" 0.82" 0.31" 0.56" 0.95"
-3 2.5" 1" 0.06" 0.56" 0.82" 0.43" 0.68" 0.95"
-4 2.5" 1" 0.06" 0.56" 0.82" 0.56" 0.82" 0.95"

Reviews

Great product.

Steiner G Verified Purchase

Silicon Nipple MS25171-2S Wht

March 26, 2024

fit well

Daniel J Verified Purchase

Silicon Nipple MS25171-2S Wht

March 19, 2024

Brandon S Verified Purchase

Silicon Nipple MS25171-2S Wht

October 26, 2023

Chep G Verified Purchase

Silicon Nipple MS25171-2S Wht

September 5, 2023

Good quality product.

Keith W Verified Purchase

Silicon Nipple MS25171-2S Wht

May 12, 2023

Download A-A-59178B from everyspec for a better drawing.

John B
February 2, 2023

perfect fast shipping

Ham K
May 21, 2021

came just as expected!

Mike
May 3, 2021

Fits properly over terminal on Concord RG-35AXC battery and provides proper electrical separation.

Michael H
March 28, 2021

I use them for the starter cable on Marine generators

Gary
March 15, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are these widths in inches or cm?

The dimensions listed are in inches.

Q: Any temperature specification? How do they perform inside an engine cowling?

The temp range is from -85 to 4010F, and these are commonly used on engine components.
