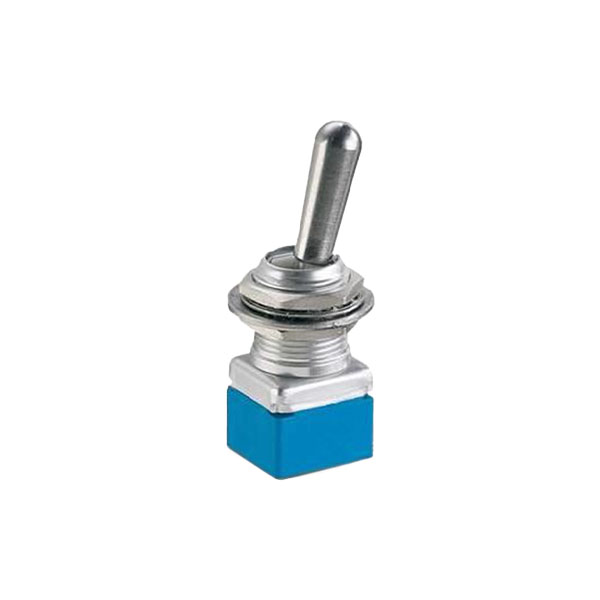

Mini. Toggle Switch T3-11151

$41.90/Each
Part# 11-00776
MFR Model# T3-11151
# of PolesMIL No.OTTO No.CircuitOur Part No.
1MS27718-27-1T3-11151mom-off-mom11-00776

Overview

These miniature toggles are rugged, highly reliable switches offering positive detent action for safe switching operation. Featuring the unique OTTO snap-action switch mechanism in conjunction with a unique toggle actuator design, the T3 series offers snap-action contact actuation.

High contact pressure and superior wiping action of the OTTO design makes the T3 series an excellent choice for switching loads from logic level up to 5 amps.

15/32" sealed bushing construction, momentary and/or maintained operation.

Mounting hardware provided includes two hex nuts, one lockwasher and one keyway washer.

Note: MOM designates Momentary On.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Snap-action contact actuation
  • Shorter behind panel depth
  • Superior wiping action keeps contacts clean
  • Positive tactile response prevents operating errors
  • Weighs up to 25% less than competitive products
  • More contact/terminal plating choices
  • Highly reliable: simpler design, fewer parts
  • Black matte finish available (contact factory)
  • RoHS/WEEE/Reach compliant

Specifications

Specifictions

Ratings

Ratings

Reference Chart

Reviews

Nice MIL quality switch. Just what I needed for my cabin dome light on my vintage aircraft.

Tony
October 5, 2017
