Mitchell 75 Amp Shunt

3 Reviews 6 Answered Questions
$67.75/Each
Quantity
Add to Wishlist View More In This Series →
Part# 10-10185
MFR Model# PS-211-9101

Overview

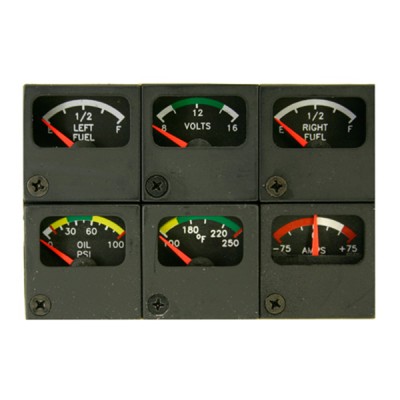

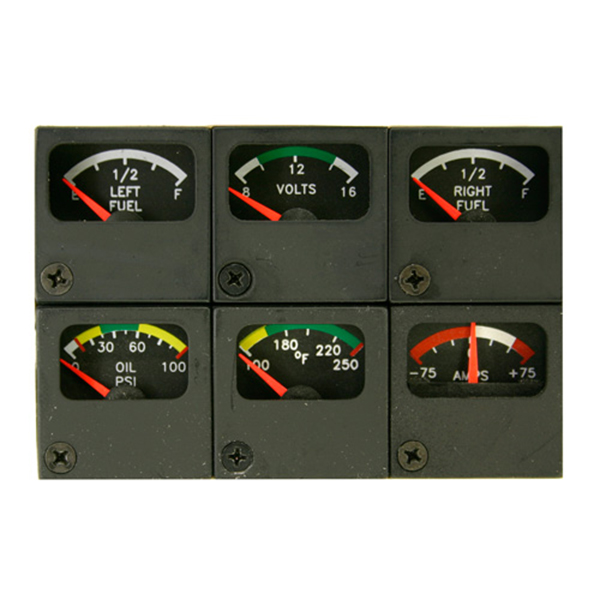

This line of miniature engine gauges from Mitchell is ideal for a wide variety of general aviation applications. They measure nearly 1-1/2 inches square and are stackable. The modular design allows them to be plugged from the front of the panel. The units are internally lighted. Complete standard panels are also available.

*FAA Approved. If individual gauges are ordered, appropriate backplate with pigtail must be ordered to mount and connect the gauge. If more than one gauge ordered to be mounted together, a special order cluster can be configured that requires custom backplates.

Note: All modular gauges after April 03, 2017 feature a new connector configuration. New style gauges will fit into existing frames but require changing the mating connector plate. Previous style connectors are now obsolete and no longer available

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Oil Pressure: Absolutely perfect for my RV9. Purchased with 2x3 gauge frame. Installation was a snap.

Mike
March 23, 2019

75 Amp Ammeter: Absolutely perfect for my RV9. Purchased with 2x3 gauge frame. Installation is a snap. Caution: Check with Mitchell before ordering to determine which back plate connector you need. the connectors for the 45 amp is different from 75 amp ammeter.

Mike
March 23, 2019

Absolutely perfect for my RV9. Purchased with 2x3 gauge frame. Installation is a snap.

Mike
March 23, 2019

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I am trying to find the sender units that go with the following Mitchell CHT gauge, Mitchell oil temp gauge

Please review the accessories tab under this instrument for the appropriate senders.

Q: Hi are the Mitchell gauges approved for replacement in a C206 with a continental engine 1976 model?

Yes, Mitchell gauges are FAA PMA'd.

Q: Are the Mitchell engine instruments FAA Approved for installation in certificated aircraft?

Yes, these Mitchell gauges are FAA PMA'd.

Q: I am interested in the Mitchell Fuel Pressure 80 PSI gauge, part number 10-03621. Is this a cluster gauge? Does FAA approve this gauge as a primary replacement gauge?

Part number 10-03621 is a modular (cluster) gauge that is not FAA TSO'd as a primary replacement.

Q: Are the Mitchell gauges FAA approved as primary engine instruments gauges? Can I get rid of my original cluster gauge if I replace each function (oil press., oil temp., etc.) with a Mitchell gauge?

Yes, these Mitchell gauges are FAA PMA approved for use in certified aircraft.

Q: Are the Fuel pressure gauges (10-152) electrical? What sender fits it?

Yes, these gauges are electric. 0-15psi gauge: p/n 10-25058 | 0-30psi gauge: p/n 10-25060 |s ender: p/n 10-25065
