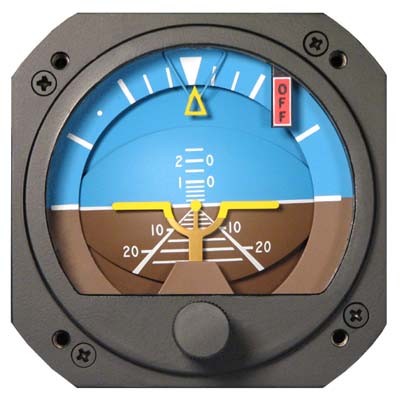

- Photo may represent series and not specific product
- SHARE
RC Allen Factory Overhauled RCA22-7
MFR Model# RCA22-7
FREE Shipping
| Model | Description | Part Number |
|---|---|---|
| RC Allen Factory Overhauled RCA22-7 | Standard Brown & Blue | 10-05439 |
Overview
|
Note: Units are furnished with 8130-3 forms. Vacuum artificial horizon are controlled by air driven precision gyros to present the pilot with pitch and roll information. The attractive color scheme of blue sky and brown ground presents a realistic spherical display of flight. Unless otherwise indicated all instruments have a dark blue/brown display, fixed pointer and are unlighted. This is the "standard" display. Additional core charge added to purchase at time of checkout Exchange core must be a like core* and the core must be returned no later than 20 days from the invoice date to receive core credit. All RCA22 gyros are acceptable cores for 10-05439, 10-05870, 10-05872. Only RCA22-7F is an acceptable core for 10-05869. All RC Allen vacuum gyros run off of 4.5" Hg, erect time is 3 min. Review "Model Specifications" tab before finalizing order* Instrument fits in a standard 3-1/8" panel cutout. 1/4"-18 NPTF nylon tube slip fitting is recommended for vacuum hose installation. 1/8"-27 NPTF nylon tube slip fitting is recommended for vacuum gage installation. Height: 3.38" Width: 3.38" Length: 6" Weight: 2.75 lbs. Made in the USA Meets of exceeds all requirements of FAA TSO C4c and Aeronautical Standard AS396B. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Model Specifications
- 22-7: Standard Brown & Blue
- 22-7F: Standard with a Warning Flag
- 22-11: Standard Lighted (Specify: voltage 14V or 28V and tilt)
- 22-11F: Standard Lighted, with a Warning Flag (Specify: voltage 14V or 28V and tilt)

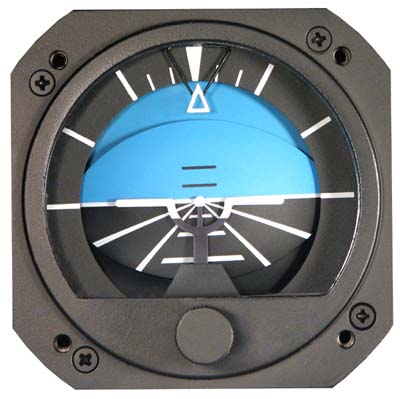

- 22-15: Standard Black & Blue
Reviews
Very satisfied
Verified Purchase
RC Allen Factory Overhauled RCA22-7
Well packaged and easy to hook up. Works great.
Looks good haven’t but back in service yet
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
There will be a core charge added to your cart along with the unit. Once you return a valid core in exchange, your core charge is refunded.
The 8 degree version may be purchased with this program. Please specify the tilt desired at purchase.
Yes this is FAA TSO Approved for use in certified aircraft.
Yes, the RC Allen overhauled units come with a 1 year factory warranty.
Per supplier: No it is not. It must be a like core. If they buy a new unit we will give them a 100.00 for their old unit.
Yes, these are approved for use on certified aircraft. Return to service and 8130-3 paperwork is included in the box.
RC Allen is the overhaul shop.
No, the Sigmatek 5000B is not an acceptable core exchange. All of the RC Allen RCA 22 gyros are acceptable
