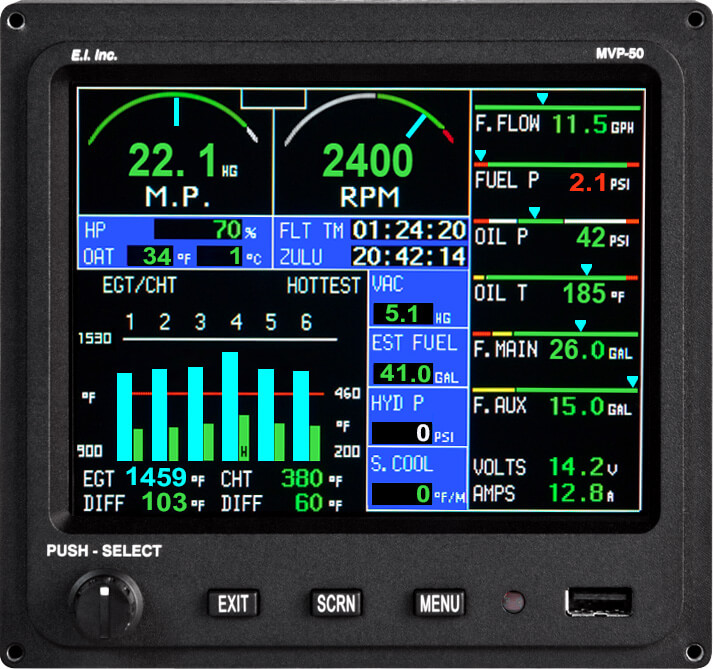

- Photo may represent series and not specific product
- SHARE
Electronics International MVP 50P Glass Panel Engine Monitor Twin 4 Cylinder TSO
MFR Model# MVP-50P-4T-C
FREE Shipping
Overview
|
*IMPORTANT: Marking requirement form must be filled out at time of ordering. Please click the link below to download the PDF form. It must be faxed in to 951-372-0555 or emailed in before order can be processed.
E.I. products include all documentation and certifications MVP 50P Configuration Worksheet (Required for Order) Click here to view STC/AMT list. Engine and System Monitoring: The MVP-50P replaces over 15 Engine Instruments and 50 Functions in a single, full color, enhanced TFT glass display instrument. It features excellent viewability, even in direct sunlight. The MVP-50 is an unrivaled Engine and Aircraft System Monitor with an easy-to-read and easy-to-use format. There are Pilot-Programmable colors, ranges and limits and a voice alarm for each instrument displayed. Its “System Page” displays trims, flaps, wheel status lights, many system parameters and annunciators. This is the most powerful engine and system analyzer on the market, featuring the following displays: Bar Graph (with Scan and Hottest Cylinder modes), Rich-of-Peak, Lean-of-Peak, Full Digital, Normalized and Differential. The MVP-50P’s instant red and yellow visual warnings, as well as voice annunciators for all Programmed Limits, eliminate the need to constantly scan an entire panel for possible problems. In-Flight Data: The MVP-50P provides many “Flight Data Screens” to reduce cockpit clutter and pilot workload. Some of these screens are: Fuel Management, Timers, Clocks and Date, Weight and Balance, Data Recording, Custom Checklists (Start, Taxi, Run-up w/ Mag Drop, Take Off, Landing, Emergency and more!), Custom Flight Plans, General Information (Aircraft Performance, Engine Diagnostics, VSI Lights, Airspeed, VFR Minimums, Altitude Table, Light Gun Signals, Transponder Codes, Frequencies, Real-Time Out (providing telemetry for UAV racers, etc.), plus additional Screens, including: Flight Log, Max Data Log, Min Data Log and others. And it’s easy to create your own, Custom Screens and download them to the MVP-50P through its USB port. Compatible with OP Technologies and Chelton. EGView Charting Software is also available for use with the MVP-50P. Other Functions Included: Help Screen; EGT & CHT Differentials; Shockcooling; Horsepower; Weight & Balance Data and Graph; GPS Interface and Data; Fuel Efficiency; Fuel Used for Trip; Fuel Used Since Fill Up; Time to Empty; Distance to Empty; Fuel; Time and Distance to Way Point; Fuel Reserve; Time Reserve; Distance Reserve; Up and Down Timers; Flight and Tach Timers; Engine Hours; Date; Local and Zulu Time; Voice Warnings; Data Recording: selectable .33 – 6 min., 665 hours @ 6 seconds! |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Specifications
- Now TSO’d & STC’d
- Weight: 1.9 lbs.
- Width: 5.55 in.
- Length: 5.15 in.
- Depth: 2.4 in.
- Power Requirements: 7.5 to 30 Volts
- Warranty: 1 year from installation
Hardware Included
- MVP-50P Color Display Instrument
- EDC Engine Data Converter - (a second EDC can be added to double the input capability of the MVP-50).All of the probes and transducers are connected to the EDC (Engine Data Converter). This small box (4.5” x 3.5” x 2.2”) converts all engine data to serial data, which is then provided to the MVP-50P via two wires. This considerably reduces installation time. Also it reduces the wire bundle to the instrument panel by over 100 wires!
- Pre-Wired Harness
- All EGT, CHT & OAT Probes and Cables (Standard 6" cables EGT P-110, CHT P-100)
- Oil Pressure & Oil Temp Transducers and Cables
- Fuel Pressure & Fuel Flow Transducers and Cables
- RPM Pickups and Cables (2 ea)
- Manifold Pressure Transducer and Cable
- Shunt (for Amps) and Cable
- Volts Pick Up
- USB Download & Upload Memory Stick
- AL-1R (Red External Warning Light)
- AV-17CP Voice Warning Control Panel (Not included with certified version)
- Cable extensions for an additional cost upon request.
- Alternate EGT/CHT probes available upon request.
Documents
- Click here for the MVP-50P Operating Instructions
- Click here for the MVP-50P Installation Instructions
- Click here for the MVP-50P Installation Checklist
- Click here for the MVP-50P Setup Checklist
- Click here for the MVP-50P Twin Installation Instructions
- Click here for the MVP-50P Pilot's Diagnostic manual
- Click here for the MVP-50P STC and Approved Model List
- Order Form
Reviews
I have had Electronics International Inc(EI) gauges in several of my airplanes and have always enjoyed them. Their equipment has always been just perfect for task and when Ive compared them to other manufactures Ive always chosen EI over their competitors. My most recent experience is with the MVP-50P engine monitor in my Cessna 180. It is an awesome unit and when you compare it to the others out there I believe it is superior to any of the other choices. So, now you have excellent equipment, what about the support should you have a question or need a repair? Well, hands down they are there to support you 110%. Ive talked with Blake and Dave numerous times and they have helped me troubleshoot issues that actually turned out to be problems on my end. They are a great company, with great employees and great products. I highly recommend the MVP-50 engine monitor or any of the products they manufacture! Youll be glad you did!
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes as long as you have a resistive float type probe part number 10-03191 (RFLM-4-24).
Per EI: Yes, the EI MVP-50 can be a primary replacement for tac manifold pressure and fuel pressure.
Per the manufacturer: Yes, the MVP-50P will accept GPS data from a Garmin 296.
To obtain a pressure altitude indicator on your MVP 50 you will require a pressure transducer, part number 10-03239, plus you will have to return the MVP 50 to Electronics International for a configuration update to add pressure altitude as a secondary function.
Per the installation manual, this can display up to four tanks.
Please view the document section for the STC and AML.
Per the manufacturer, the voice annunciation is not available for the certified MVP50P.
Per EI: These are custom programmed. MAP is not required on the MVP, but RPM must be present - so the 2nd arc will be free. Most typically, we see this space used to report Fuel Flow or Oil Pressure. Vacuum also is not required, and any other parameter on the instrument can fill this hole.
